Asus PRIME H610M-R DDR5 LGA1700 Micro-ATX Motherboard

<p>The Asus PRIME H610M-R DDR5 LGA1700 Micro-ATX Motherboard is the ideal choice for PC DIY builders and users seeking a reliable, future-proof platform for their system. Designed to support the latest 12th, 13th, and 14th Generation Intel® Core™, Pentium® Gold, and Celeron® processors, this motherboard provides the performance and flexibility you need for both gaming and professional applications.</p>
<p>With a micro-ATX form factor, the Asus PRIME H610M-R DDR5 motherboard is compact, making it a perfect fit for small-to-medium PC builds while offering ample connectivity and expansion options. It features 2 x DIMM slots that support up to 64GB of DDR5 memory with speeds of up to 3200 MHz, ensuring smooth multitasking and responsiveness for demanding tasks.</p>
<p>Connectivity is a key strength of this motherboard, featuring 1 x PCIe 4.0 x16 slot for powerful graphics cards and 1 x M.2 slot supporting 32 Gbps data transfer speeds for fast storage. The motherboard also comes with 4 x SATA 6Gb/s ports, providing flexible storage expansion for your build.</p>
<p>Security and longevity are top priorities, with Asus’ 5X Protection III technology. This includes DIGI+ VRM for precise power delivery, LANGuard for network protection, and SafeSlot Core to reinforce the PCIe slots, making the ASUS PRIME H610M-R highly durable and reliable. The motherboard also offers robust network connectivity with Realtek 1Gb Ethernet and immersive audio with Realtek 7.1 Surround Sound High Definition Audio CODEC.</p>
<p>The Asus PRIME H610M-R DDR5 motherboard is designed to make system setup easy with an intuitive UEFI BIOS, EZ Flash 3, and CrashFree BIOS 3 for effortless BIOS updates and recovery.</p>
<p>Whether you’re building a gaming rig, workstation, or home PC, the Asus PRIME H610M-R offers a balanced combination of performance, connectivity, and protection, making it a perfect foundation for your next PC build.</p>
<h3>FEATURES:</h3>
<ul>
<li>Supports Intel® 12th, 13th &amp; 14th Gen CPUs for high-performance processing</li>
<li>Micro-ATX form factor for versatile, compact PC builds</li>
<li>2 x DIMM slots for up to 64GB of DDR5 memory (3200 MHz)</li>
<li>PCIe 4.0 x16 slot for powerful graphics cards and expansion</li>
<li>1 x M.2 slot for ultra-fast storage with 32 Gbps transfer speeds</li>
<li>4 x SATA 6Gb/s ports for ample storage options</li>
<li>Realtek 1Gb Ethernet for stable and fast network connectivity</li>
<li>Realtek 7.1 HD Audio CODEC for an immersive audio experience</li>
<li>5X Protection III including DIGI+ VRM and SafeSlot Core for enhanced durability</li>
<li>UEFI BIOS with EZ Flash 3 and CrashFree BIOS 3 for easy system management and updates</li>
</ul>
<h3>SPECIFICATIONS:</h3>
<ul>
<li><strong>CPU</strong></li>
<li>Intel^®Socket LGA1700 for Intel^® Core™ 12th, 14^th &amp; 13^th Gen Processors,Pentium^® Gold and Celeron^® Processors</li>
<li>Supports up to Intel® 65W CPU</li>
<li>Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0</li>
<li><strong>Chipset</strong></li>
<li>Intel® H610 Chipset</li>
<li><strong>Memory</strong></li>
<li>2 x DIMM slots, max. 96GB, DDR5</li>
<li>5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory</li>
<li>Dual Channel Memory Architecture</li>
<li>Supports Intel® Extreme Memory Profile (XMP)</li>
<li><strong>Graphics</strong></li>
<li>1 x DisplayPort<br />
1 x VGA port<br />
1 x HDMITM port</li>
<li><strong>Expansion Slots</strong></li>
<li>Intel® Core™ Processors (14th &amp; 13th &amp; 12th Gen)
<ul>
<li>1 x PCIe 4.0 x16 slot</li>
</ul>
</li>
<li>Intel® H610 Chipset
<ul>
<li>1 x PCIe 3.0 x1 slot</li>
</ul>
</li>
<li><strong>Storage</strong></li>
<li>Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports</li>
<li>Intel® H610 Chipset</li>
<li>M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)</li>
<li>4 x SATA 6Gb/s ports</li>
<li><strong>Ethernet</strong></li>
<li>1 x Realtek 1Gb Ethernet</li>
<li><strong>USB</strong></li>
<li>Rear USB (Total 4 ports)
<ul>
<li>2 x USB 3.2 Gen 1(5G) ports (2 x Type-A)</li>
<li>2 x USB 2.0 ports (2 x Type-A)</li>
</ul>
</li>
<li>Front USB (Total 6 ports)
<ul>
<li>1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports</li>
<li>2 x USB 2.0 headers support an additional 4 USB 2.0 ports</li>
</ul>
</li>
<li><strong>USB Ports</strong></li>
<li>2 x USB4® (40Gbps) port(s) (2 x USB Type-C®)</li>
<li>1 x USB 20Gbps port(s) (1 x USB Type-C®)</li>
<li>7 x USB 10Gbps port(s) (7 x Type-A)</li>
<li>1 x USB 2.0 port (1 x Type-A)</li>
<li>1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+)</li>
<li>1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports</li>
<li>3 x USB 2.0 headers support 6 additional USB 2.0 ports</li>
<li><strong>Audio</strong></li>
<li>Realtek 7.1 Surround Sound High Definition Audio CODEC
<ul>
<li>Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking</li>
<li>Supports up to 24-bit/192 kHz playback</li>
</ul>
</li>
<li>Audio Features:
<ul>
<li>Audio Shielding</li>
<li>Premium audio capacitors</li>
<li>Dedicated audio PCB layers</li>
</ul>
</li>

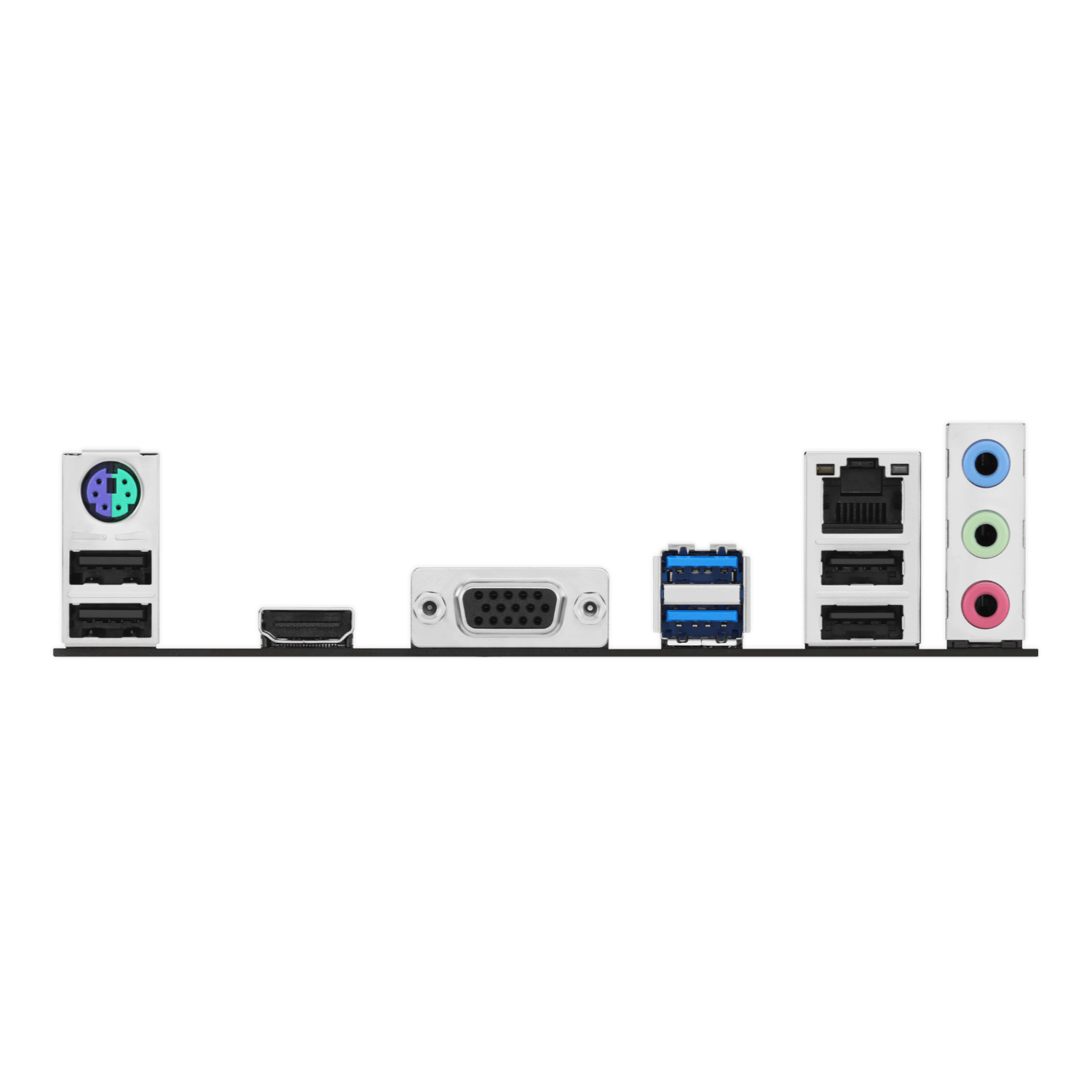

<li><strong>Back Panel I/O Ports</strong></li>
<li>2 x USB 3.2 Gen 1(5G) ports (2 x Type-A)</li>
<li>2 x USB 2.0 ports (2 x Type-A)</li>
<li>1 x DisplayPort</li>
<li>1 x VGA port</li>
<li>1 x HDMITM port</li>
<li>1 x Realtek 1Gb Ethernet port</li>
<li>3 x Audio jacks</li>
<li>1 x PS/2 Keyboard (purple) port</li>
<li>1 x PS/2 Mouse (green) port</li>
<li><strong>Internal I/O Connectors</strong></li>
<li>Fan and Cooling:
<ul>
<li>1 x 4-pin CPU Fan header</li>
<li>1 x 4-pin Chassis Fan header</li>
</ul>
</li>
<li>Storage-related:
<ul>
<li>1 x M.2 slot (Key M)<br />
4 x SATA 6Gb/s ports</li>
</ul>
</li>
<li>USB:
<ul>
<li>1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports</li>
<li>2 x USB 2.0 headers support an additional 4 USB 2.0 ports</li>
</ul>
</li>
<li>Miscellaneous:
<ul>
<li>1 x Clear CMOS header</li>
<li>1 x Chassis Intrusion header</li>
<li>1 x COM Port header</li>
<li>1 x Front Panel Audio header (AAFP)</li>
<li>1 x LPT header</li>
<li>1 x Speaker header</li>
<li>1 x SPI TPM header (14-1 pin)</li>
<li>1 x 10-1 pin System Panel header</li>
</ul>
</li>
<li><strong>Special Features</strong></li>
<li>ASUS 5X PROTECTION III
<ul>
<li>DIGI+ VRM</li>
<li>LANGuard</li>
<li>Overvoltage Protection</li>
<li>SafeSlot Core</li>
<li>Stainless-Steel Back I/O</li>
</ul>
</li>
<li>ASUS Q-Design
<ul>
<li>Q-DIMM</li>
<li>Q-Slot</li>
<li>Q-LED Core</li>
</ul>
</li>
<li>ASUS Thermal Solution
<ul>
<li>Aluminium heatsink design</li>
</ul>
</li>
<li>Software Features</li>
<li>ASUS Exclusive Software
<ul>
<li>Armoury Crate</li>
<li>AI Suite 3</li>
<li>EPU</li>
<li>DIGI+ VRM</li>
<li>PC Cleaner</li>
<li>ASUS CPU-Z</li>
<li>Norton 360 for Deluxe (60 Days Free Trial)</li>
<li>WinRAR</li>
</ul>
</li>
<li>UEFI BIOS
<ul>
<li>ASUS EZ DIY</li>
<li>ASUS CrashFree BIOS 3</li>
<li>ASUS EZ Flash 3</li>
<li>ASUS UEFI BIOS EZ Mode</li>
</ul>
</li>
<li><strong>BIOS</strong></li>
<li>128 Mb Flash ROM, UEFI AMI BIOS</li>
<li><strong>Manageability</strong></li>
<li>WOL by PME, PXE</li>
<li><strong>Operating System</strong></li>
<li>Windows® 11 64-bit, Windows® 10 64-bit</li>
<li><strong>Form Factor</strong></li>
<li>mATX Form Factor</li>
<li>Dimensions: 22.6 cm x 19.5 cm</li>
</ul>
<h3>WHAT'S IN THE BOX:</h3>
<ul>
<li>Asus PRIME H610M-R DDR5 LGA1700 Micro-ATX Motherboard x1</li>
<li>SATA 6Gb/s cables x2</li>

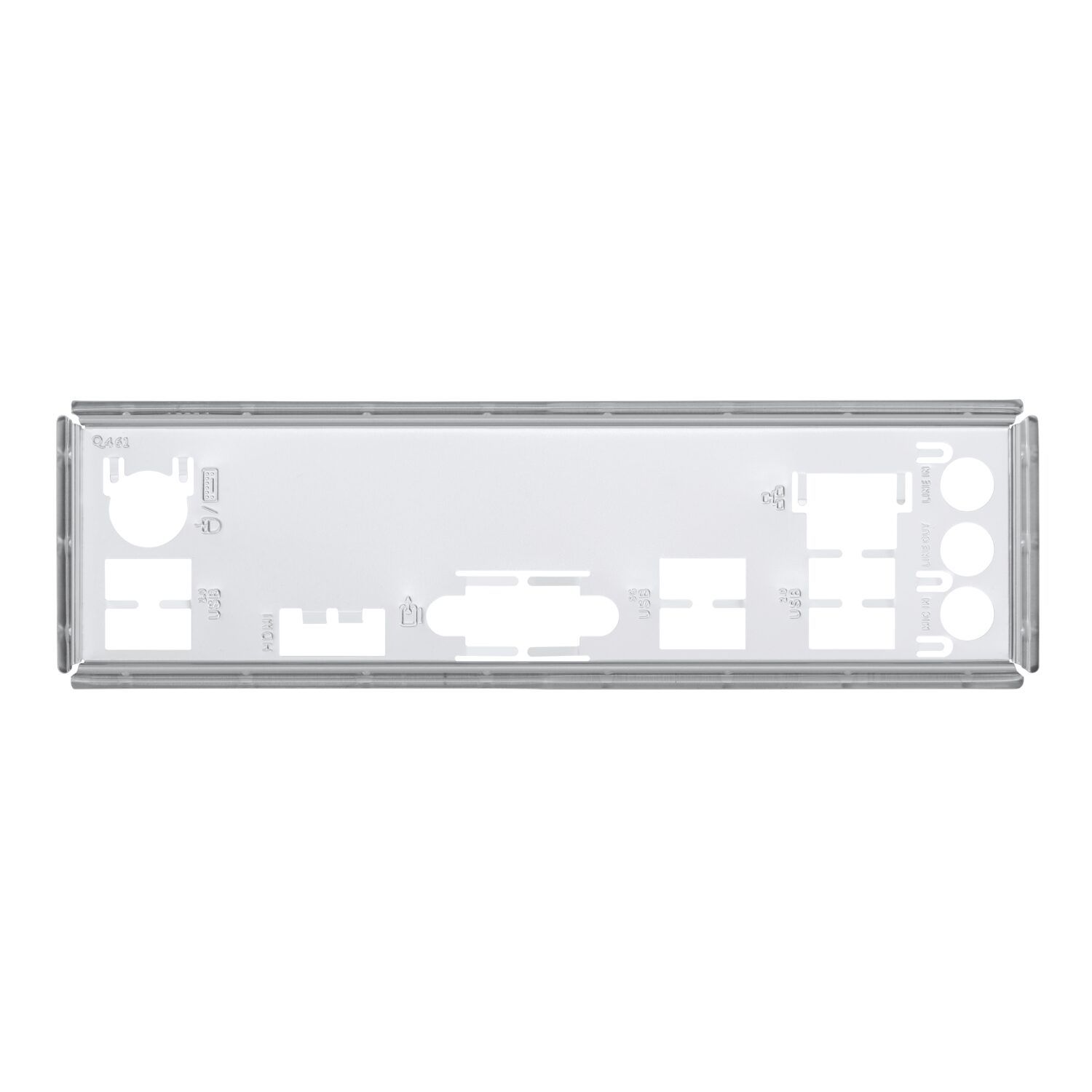

<li>I/O Shield x1</li>
<li>M.2 ANCHOR x1</li>
<li>User guide x1</li>
</ul>
