Asus PRIME H810M-A WIFI LGA1851 Micro ATX Motherboard

<h3>Quick Specs</h3>
<ul>
<li>Supports the latest Intel LGA1851 processors for cutting-edge performance.</li>
<li>Experience faster data transfer speeds with a PCIe 4.0 slot.</li>
<li>Enjoy stable wireless connections with built-in Wi-Fi.</li>
<li>Benefit from user-friendly PC building with SafeSlot Core+ and Q-LED Core.</li>
<li>Achieve high-fidelity audio with advanced audio features.</li>
</ul>
<h3>Built for the latest Intel CPUs</h3>
<p>Designed to support the newest Intel LGA1851 processors, this micro ATX motherboard ensures you're ready for the next generation of computing. Whether you're building a gaming rig or a workstation, this motherboard provides a solid foundation for your system.</p>
<h3>Fast and reliable connectivity</h3>
<p>Featuring a PCIe 4.0 slot, the Asus PRIME H810M-A WIFI micro ATX motherboard delivers lightning-fast data transfer speeds for your graphics card and other expansion cards. The integrated Wi-Fi ensures stable and reliable wireless connections, perfect for streaming, gaming, and video conferencing.</p>
<h3>User-friendly design for easy PC building</h3>
<p>The SafeSlot Core+ and Q-LED Core features make PC building easier and safer. SafeSlot Core+ reinforces the PCIe slot to prevent damage from heavy graphics cards, while Q-LED Core provides visual cues to help diagnose and troubleshoot common issues during the build process. This DDR5 motherboard also simplifies upgrades.</p>
<h3>Immersive audio experience</h3>
<p>With its advanced audio features, this DDR5 motherboard delivers high-fidelity sound for an immersive gaming and multimedia experience. Enjoy clear and crisp audio whether you're using headphones or speakers.</p>
<h3>Durable and reliable performance</h3>
<p>Built with high-quality components and rigorous testing, the Asus PRIME H810M-A WIFI DDR5 motherboard ensures long-lasting durability and reliable performance. This micro ATX motherboard is designed to handle the demands of modern computing, providing a stable and efficient platform for your system.</p>
<h3>FEATURES:</h3>
<ul>
<li>Intel H810M Chipset</li>
<li>Supports Intel® Core™ Ultra Processors (Series 2)</li>
<li>Supports DDR5 Memory, Dual Channel DDR5 6400+ MT/s (OC) 128GB max capacity</li>
<li>Ultra-fast Wi-Fi 6 connectivity with Realtek 1G Ethernet LAN</li>
<li>Lightning Fast Game experience: PCIe 4.0 slot support</li>
<li>EZ PC DIY: SafeSlot Core+ and Q-LED Core for easy usage</li>
<li>Aura Sync support for full RGB lighting control</li>
</ul>
<h3>SPECIFICATIONS:</h3>
<ul>
<li>CPU:
<ul>
<li>Support Intel® Core™ Ultra Processors (Series 2) , LGA1851</li>
<li>Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**</li>
<li>* Refer to https://www.asus.com/support/download-center/ for CPU support list.</li>
<li>** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.</li>
</ul>
</li>
<li>Chipset: Intel® H810 Chipset</li>
<li>Memory:
<ul>
<li>2 x DIMM slots, max. 128GB, DDR5</li>
<li>Supports up to 6400MT/s, Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*</li>
<li>Dual channel memory architecture</li>
<li>DIMM Fit</li>
<li>Supports Intel® Extreme Memory Profile (XMP) memory module</li>
<li>ASUS Enhanced Memory Profile II (AEMP II)</li>
<li>*Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration</li>
<li>** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.</li>
</ul>
</li>
<li>Graphics:
<ul>
<li>1 x DisplayPort**</li>
<li>1 x HDMI™ port***</li>
<li>* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.</li>
<li>** Supports max. 4K@60Hz as specified in DisplayPort 1.4.</li>
<li>*** Supports 4K@60Hz as specified in HDMI 2.1.</li>
<li>**** VGA resolution support depends on processors' or graphic cards' resolution.</li>
</ul>
</li>
<li>Expansion Slots:
<ul>
<li>Intel® Core™ Ultra Processors (Series 2)</li>
<li>1 x PCIe 4.0 x16 slot</li>
<li>Intel® H810 Chipset</li>
<li>1 x PCIe 4.0 x1 slot</li>
<li>To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.</li>
</ul>
</li>
<li>Storage:
<ul>
<li>Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports</li>
<li>Intel® H810 Chipset</li>
<li>M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)</li>
<li>M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)</li>
<li>4 x SATA 6Gb/s ports</li>
</ul>
</li>
<li>Ethernet:
<ul>
<li>1 x Intel® 1Gb Ethernet port*</li>
<li>ASUS LANGuard</li>
<li>*With Intel® I219V LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3.</li>
</ul>
</li>
<li>Wireless &amp; Bluetooth:
<ul>
<li>Wi-Fi 6</li>
<li>1x1 Wi-Fi 6 (802.11ax)</li>
<li>Supports 2.4/5GHz frequency band</li>
<li>Bluetooth® v5.3*</li>
<li>* The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.</li>
</ul>
</li>
<li>Rear USB (Total 6 ports):
<ul>
<li>2 x USB 10Gbps ports (2 x Type-A)</li>
<li>4 x USB 2.0 ports (4 x Type-A)</li>
</ul>
</li>
<li>Front USB (Total 5 ports)
<ul>
<li>1 x USB 5Gbps connector (supports USB Type-C®)*</li>
<li>1 x USB 5Gbps header supports 2 additional USB 5Gbps ports</li>
<li>1 x USB 2.0 header supports 2 additional USB 2.0 ports</li>
<li>* USB Type-C® power delivery output: max. 5V/3A</li>
<li>** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.</li>
</ul>
</li>
<li>Audio:
<ul>
<li>Realtek 7.1 Surround Sound High Definition Audio CODEC*</li>
<li>Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking</li>
<li>Supports up to 24-Bit/192 kHz playback</li>
</ul>
</li>
<li>Audio Features:
<ul>
<li>Audio Shielding</li>
<li>Premium audio capacitors</li>
<li>Dedicated audio PCB layers</li>
<li>* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.</li>
</ul>
</li>

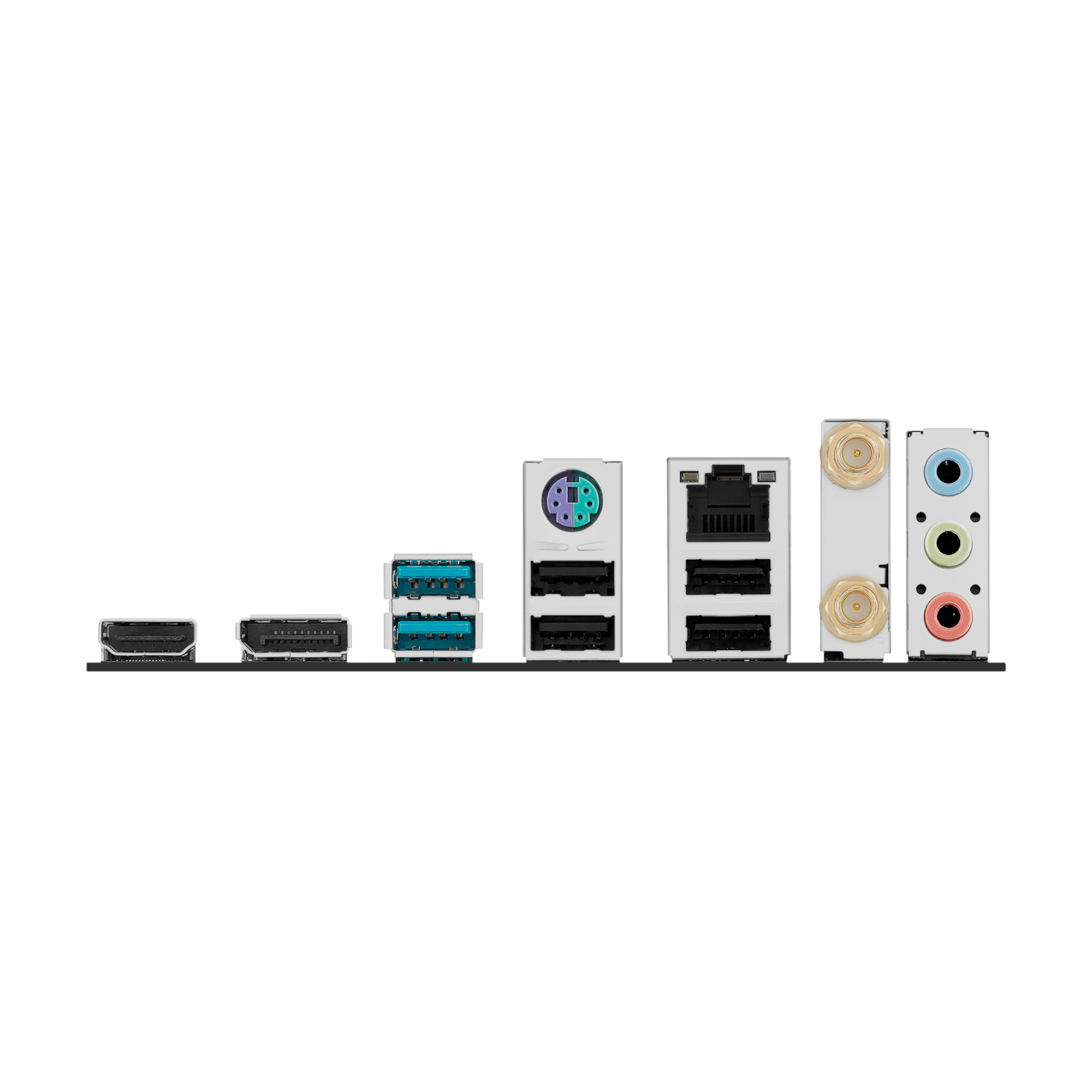

<li>Back Panel I/O Ports:
<ul>
<li>2 x USB 10Gbps ports (2 x Type-A)</li>
<li>4 x USB 2.0 ports (4 x Type-A)</li>
<li>1 x DisplayPort</li>
<li>1 x HDMI™ port</li>
<li>1 x Wi-Fi module</li>
<li>1 x Intel® 1Gb Ethernet port</li>
<li>3 x Audio jacks</li>
<li>1 x PS/2 keyboard/mouse combo port</li>
</ul>
</li>
<li>Operating System: Windows 11 (22H2 &amp; later), Windows 10 64-bit (21H2 &amp; later)</li>
<li>Form Factor: Micro ATX</li>
</ul>
<h3>WHAT’S IN THE BOX:</h3>
<ul>
<li>Asus PRIME H810M-A WIFI LGA1851 Micro ATX Motherboard – Black x1</li>
<li>Asus Wi-Fi Moving Antenna x1</li>
<li>SATA Cables x2</li>
<li>I/O Shield x1</li>
<li>Screw Package for M.2 SSD x1</li>
<li>Quick Start Guide x1</li>
</ul>
