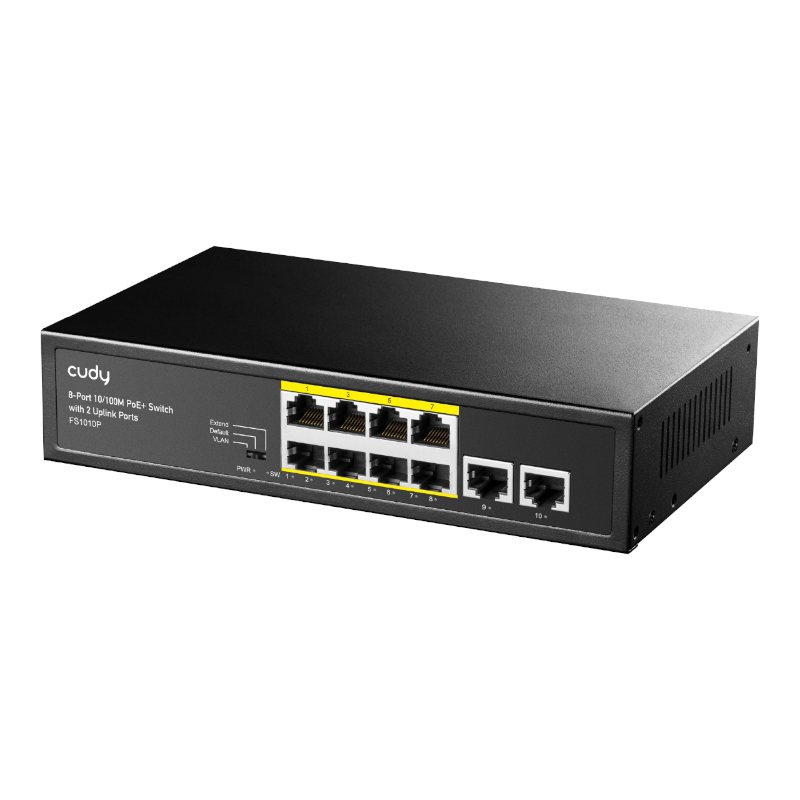

Cudy 10-Port Unmanaged PoE+ Switch

<p>The Cudy FS1010P 10-Port 10/100M PoE+ Switch makes it easy to manage your home or office network. It ensures safe operation for non-standard PoE devices while conforming to the IEEE802.3af/at standards, with a total PoE power capacity of 120 W and the ability to deliver up to 30 W of power to a single PoE port.</p>
<p>The PoE watchdog feature monitors the connectivity status of remote PoE devices in real-time. If an issue with a remote PoE device is detected, the PoE switch immediately performs a restart to restore normal operation.</p>
<p>It's a simple, plug-and-play solution that's really easy to use. Its fanless design ensures silent operation, and the long-lasting metal case provides longevity and excellent heat dissipation, making it suited for a variety of situations.</p>
<p>The pin assignment is as follows: 1/2 (positive), 3/6 (negative), making it compatible with a wide range of devices. It works well with IP cameras in both the home and workplace, VoIP phones for professional conferences, and WiFi access points for office and commercial applications.</p>
<h3>FEATURES:</h3>
<ul>
<li>Support IEEE802.3at and IEEE802.3af Standard</li>
<li>120W PoE power output, up to 32W for one PoE port</li>
<li>Support IEEE802.3x full duplex and half duplex flow control</li>
<li>Support VLAN and CCTV Function</li>
<li>Panel lights to monitor working state and help fault analysis</li>
<li>Perfect security mechanism</li>
<li>Line-speed forwarding intelligent identification</li>
</ul>
<h3>SPECIFICATIONS:</h3>
<ul>
<li>PoE standard: IEEE802.3af/at</li>
<li>Interface: 10*10/100Mbps The RJ45 port through consultation</li>
<li>Key function: CCTV&amp;VLAN</li>
<li>PoE port: 1~8 port</li>
<li>PoE Total: 120W</li>
<li>Power supply: 120W</li>
<li>RJ45 PoE power supply: Mode A, Anode1/2, Cathode3/6</li>
<li>PoE output-port: Max 32W</li>
<li>Indicator: PWR, LNK/ACT, PoE</li>
<li>Network media:
<ul>
<li>10BASE-T: UTP category 3, 4, 5 cable(≤100m)</li>
<li>100BASE-TX: UTP category 5, 5e cable(≤100m)；</li>
</ul>
</li>
<li>MAC Address Table: 8K, Automatic study, automatic updates</li>
<li>Jumbo frame: 1528Bytes</li>
<li>Packet Neck Scarfer: 2M bit</li>
<li>Transfer Mode: Store-and-forward</li>
<li>Packet forwarding rate: 1.48Mpps</li>
<li>Bandwidth: 2M bit</li>
<li>Fan: Fanless</li>

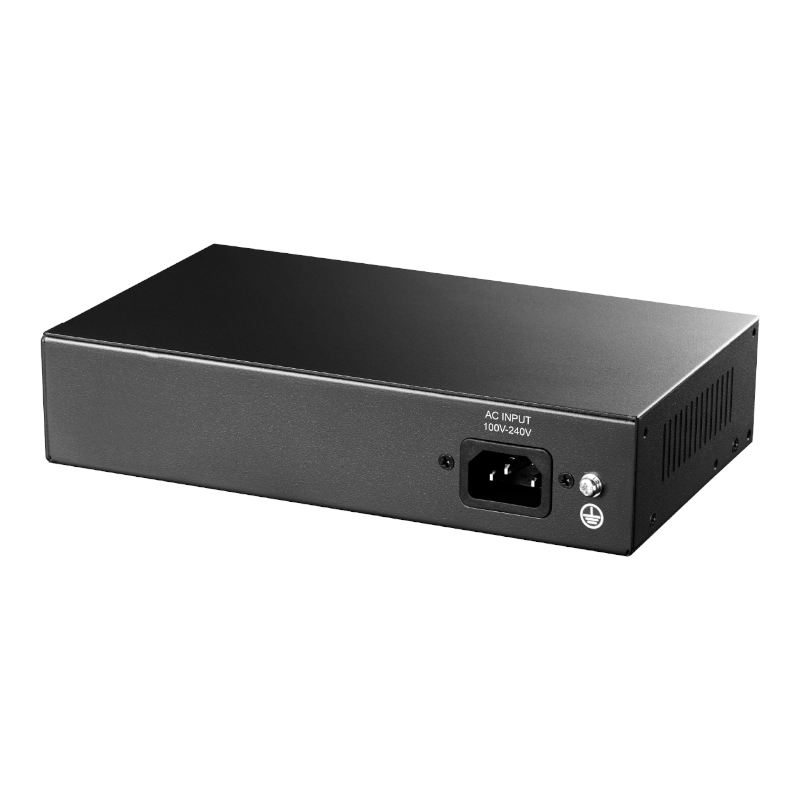

<li>Mains Input: 100~240V AC, 50/60Hz</li>
<li>Surge Protection: ±4KV</li>
<li>MTBF: &gt;50000 hour</li>
<li>Electrostatic standard: Contact 4KV, air 6KV</li>
<li>Colour: Grey</li>
<li>Product Dimensions: 20 x 18 x 4.4 cm</li>
<li>Product Weight: 1000g</li>
</ul>
<h3>WHAT'S IN THE BOX:</h3>
<ul>
<li>Cudy FS1010P 10-Port 10/100M PoE+ Switch - Grey x1</li>
<li>Power Adapter x1</li>
</ul>
