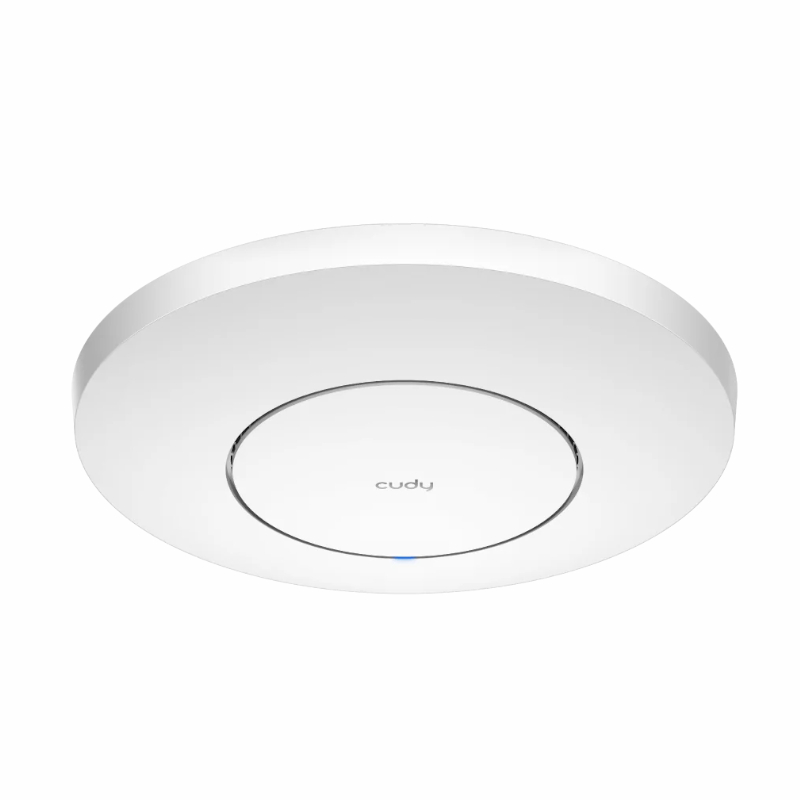

Cudy AX3000 2.5G Dual Band Ceiling Access Point

<p>The Cudy AX3000 2.5G Dual Band Ceiling Access Point is an effective solution for transforming LAN networks into high-speed, dependable wireless networks. It has dual-band Wi-Fi 6 and supports both 2.4GHz and 5GHz frequencies, with speeds of up to 867Mbps on the 5GHz band. With a 1.3 GHz dual-core CPU and plenty of RAM, it uses UL/DL MU-MIMO and OFDMA technologies to reduce transmission latency, ensuring smooth performance for multiple devices. Its five antennas, 3+2 structure, and beamforming technology improve signal strength and coverage by directing the signal to connected devices.</p>
<p>The shielded 2.5G Ethernet port enables simultaneous streaming by multiple devices without buffering, even in high-interference environments. PoE support simplifies installation by eliminating the need for extra power cables. Customisable login pages boost brand awareness, and the device's 130 m² coverage and capacity for 200 devices make it ideal for high-density environments. Convenient features such as Watchdog, Schedule Reboot, and easy mounting increase its appeal to businesses looking for reliable, high-performance wireless networking solutions.</p>
<h3>FEATURES:</h3>
<ul>
<li>5-Stream Dual-Band Wi-Fi 6</li>
<li>1× Shielded 2.5GbE PoE In</li>
<li>802.3at, Passive PoE, DC</li>
<li>Watchdog, Schedule Reboot</li>
<li>Covers 130 m² (1,400 ft²) with 5-Stream</li>
<li>200 Connected Devices</li>
</ul>
<h3>SPECIFICATIONS:</h3>
<ul>
<li>CPU: 1.3 GHz Dual-Core CPU</li>
<li>Chipset: MT7981BA</li>
<li>Flash: 256 MB (2 Gbit) NAND</li>
<li>DDR: 512 MB (4 Gbit) DDR4</li>
<li><strong>Wireless:</strong></li>
<li>5 GHz Wi-Fi Speed: 2402Mbps</li>
<li>Wi-Fi Bands: EU + DFS, US + DFS</li>
<li>2.4 GHz Wi-Fi Speed: 574 Mbps</li>
<li>5 GHz Wi-Fi Streams: 3T3R (3×3 MIMO)</li>
<li>2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)</li>
<li>Wi-Fi Antennas: 5× Internal</li>
<li>5 GHz Antenna Gain Max: 5.6 dBi</li>
<li>2.4 GHz Antenna Gain Max: 4.8 dBi</li>
<li>FEM or PA/LNA: 5 GHz: 3× High-Power, 2.4 GHz: 2× High-Power</li>
<li>Range Performance: Max: 130 m (427 ft)</li>
<li><strong>Interfaces:</strong></li>
<li>2.5G RJ45 Ports: 1</li>
<li>Ethernet Notes: Accepts PoE powering</li>
<li>LED: System</li>
<li>Physical Buttons: Reset Button</li>
<li>Power Input: DC Jack, PoE via Ethernet Port</li>
<li><strong>Power:</strong></li>
<li>Power Methods: DC, 802.3at/af PoE, Passive PoE</li>
<li>DC: 12V 1.5A</li>
<li>Passive PoE: 48 ~ 57V</li>
<li>Power Adapter: Input: 100 ~ 240 V, 50/60 Hz AC/Output: 12V 1.5A DC</li>
<li>Max Power Consumption (W): 12 W (48 V PoE) 12 W (DC)</li>
<li>Idle Power Consumption (W): 6.1 (48 V PoE) 6.1 W (DC)</li>
<li><strong>Reliability:</strong></li>
<li>System Stability: Watchdog</li>
<li>ESD Air Protection: 4kV</li>
<li>ESD Contact Protection: 8kV</li>
<li>Environment: Operating Temperature: -10 ℃ ~ 60 ℃ (14 ℉ ~140 ℉), Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)</li>
<li>Installation: Wall-Mounting, Ceiling-Mounting</li>
</ul>
<h3>WHAT’S IN THE BOX:</h3>
<ul>
<li>Cudy AX3000 Dual-Band Ceiling Access Point – White x1</li>
</ul>
