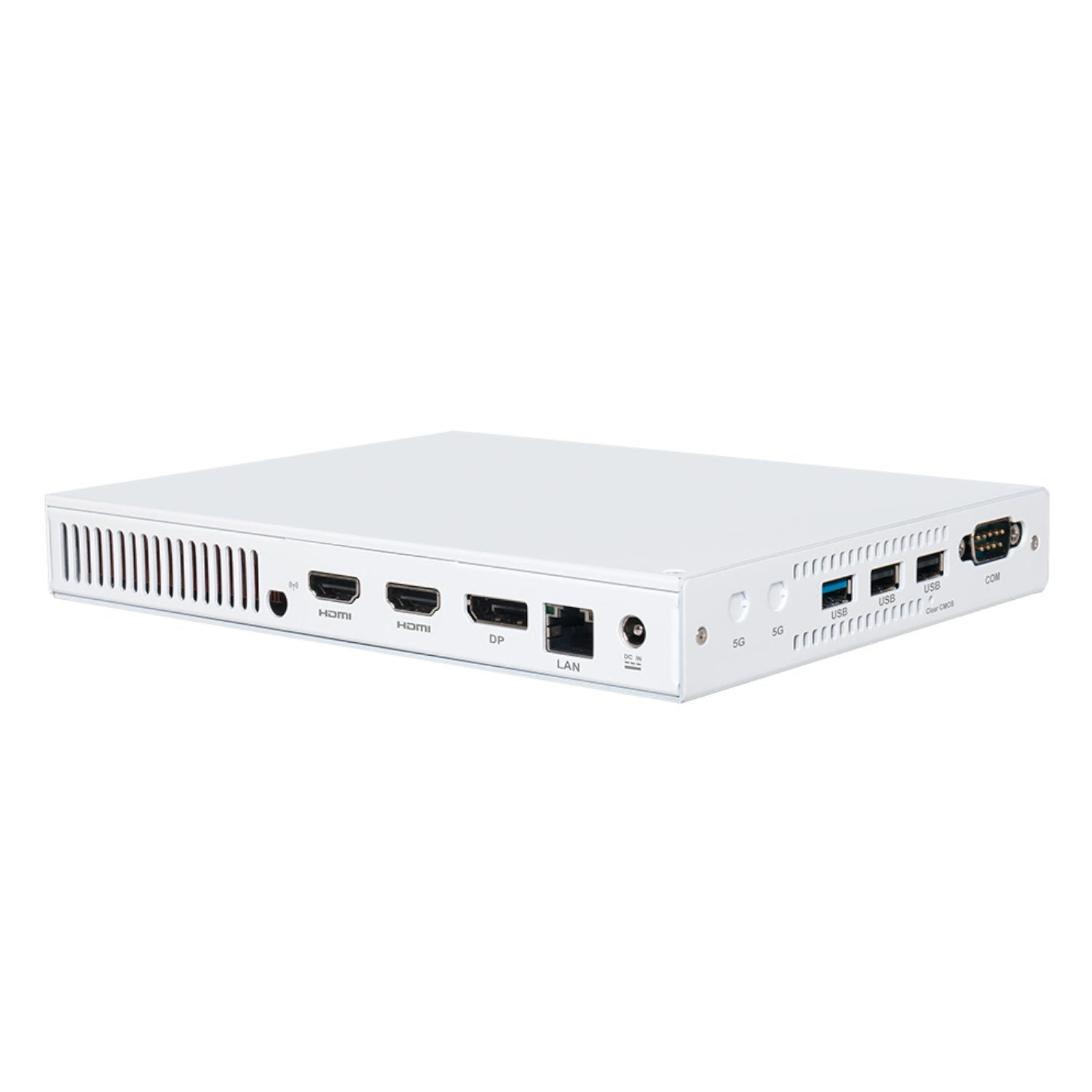

Giada H611 I5-11300H High-end Medical Computer

<p>The Giada H611 High-End Medical Computer is engineered to meet the demanding requirements of today’s healthcare environments. Compliant with IEC 60601-1 and EN 60601-1 medical safety standards, this ultra-thin PC is the perfect fit for hospitals, clinics, and medical institutions seeking high-performance, secure computing in critical applications. Powered by Intel’s 11th Gen Tiger Lake UP3 processors, specifically the Core i5-11300H, the H611 delivers exceptional speed and responsiveness, supported by a robust 35W thermal design power (TDP) that balances efficiency and power for continuous medical workloads.</p>
<p>Integrated with Intel® Iris® Xe graphics, the H611 offers a 50% improvement over the previous generation, enabling smooth 4K and even 8K visual output for diagnostic imaging and multi-monitor setups. Display support includes one DisplayPort 1.4 for up to 8K @60Hz and dual HDMI 2.0 outputs for simultaneous 4K @60Hz playback. Whether managing medical imaging software or patient data, the H611 provides the clarity and capability required in professional medical environments.</p>
<p>The unit supports 32GB DDR4 3200MHz memory across dual SO-DIMM slots and integrates a PCIe M.2 SSD slot for high-speed storage, ensuring fast boot times and quick data access. For next-generation connectivity, the H611 includes support for 5G via a Quectel RM50XQ module, enabling ultra-fast mobile broadband ideal for telehealth and remote patient monitoring systems. Additionally, Wi-Fi 6 and Bluetooth® support ensures seamless wireless integration in modern hospital networks.</p>
<p>The H611 is fortified with Infineon TPM 2.0, delivering hardware-based encryption and secure boot functionality to protect sensitive patient data and medical records. The rugged metal chassis in medical-grade white is compact (just 18.96 x 14.83 x 2.6 cm), making it ideal for space-limited installations on medical carts or in wall-mounted solutions.</p>
<p>The system features comprehensive I/O ports, including USB 3.2 Gen2 Type-C, USB 3.2 Gen2 Type-A, legacy RS232 serial support, audio jacks, and robust antenna support for wireless modules. With auto power-on, watchdog timer, and customizable RTC scheduling, the H611 ensures reliability in always-on healthcare applications.</p>
<h3>FEATURES:</h3>
<ul>
<li>Designed for Medical IEC Standard Compliant</li>
<li>Intel 11th Gen Tiger Lake Core Processors</li>
<li>Supporting 8K Display and 4K Video Playback</li>
<li>Support 5G Mobile Network</li>
<li>Trusted Platform Module Reliable Security Protection</li>
</ul>
<h3>SPECIFICATIONS:</h3>
<ul>
<li><strong>CPU:</strong>
<ul>
<li>CPU: Intel Core i5-11300H processor</li>
<li>Base Frequency : 3.10 GHz /3.40 GHz</li>
<li>Turbo Frequency: 4.40 GHz /5.00 GHz</li>
<li>Chipset: SoC</li>
<li>Processing Units: 4 Cores /4 Cores</li>
<li>Configurable TDP-up: 35 W/ 35 W</li>
</ul>
</li>
<li><strong>Memory:</strong>
<ul>
<li>Size: Up to 32 GB</li>
<li>Type: 2 x SO-DIMM DDR4-3200 MHz</li>
</ul>
</li>
<li><strong>Storage:</strong>
<ul>
<li>Socket 1: 1 x M-Key M.2 (2242/2280) for PCIe SSD</li>
</ul>
</li>
<li><strong>Display:</strong>
<ul>
<li>GPU: Intel® IRIS® Xe Graphics</li>
<li>Graphic Engine: DirectX 12.0, OpenGL 4.5, OpenCL 2.2, 8K60 12b 4:2:0 HEVC/VP9/SCC</li>
<li>Display Interface: 1 x DP (Max.7680 x 4320 @60 Hz) | 2 x HDMI (Max.4096 x 2304 @60 Hz)</li>
</ul>
</li>
<li><strong>Network:</strong>
<ul>
<li>Network Controller: 1 x Realtek RTL 8111H Gigabit Ethernet</li>
<li>Ethernet Interface: 1 x RJ45</li>
<li>Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6 (CNVi)</li>
<li>Mobile Network: 1 x B-Key M.2 (3042/3052) for 3G/4G/5G, 1 x SIM Slot</li>
</ul>
</li>
<li><strong>I/O interface:</strong>
<ul>
<li>USB: 1 x USB Type-C3.2 Gen2, 1 x USB3.2 Gen2, 2 x USB2.0</li>
<li>Serial Port: 1 x RS232</li>
<li>Audio: 1 x MIC-IN, 1 x AUDIO-OUT</li>
<li>Button: 1 x Power on, 1 x CLR-CMOS</li>
<li>Antenna: 1 x Connector for Wi-Fi/BT | 4 x Connector for 5G (Reserved)</li>
</ul>
</li>
<li><strong>System:</strong>
<ul>
<li>TPM: TPM2.0</li>
<li>Watchdog Timer: Yes</li>
<li>Auto Power On: Yes</li>
<li>RTC: Set up independently every day, a week as a cycle</li>
<li>Remo on: NA</li>
<li>Power Requirement: DC-IN, 19 V/3.42 A</li>
<li>Dimensions: 18,96 x 14,83 x 2,6 cm</li>
<li>Construction: Metal, White</li>
<li>Operating System: Windows 10 (64bit) /Windows 11 (64bit) /Linux Ubuntu (64bit)</li>
<li>Operating Temperature: 0°C ~45°C @0.7m/s Air Flow</li>
<li>Humidity: 95% @ 45°C (non-condensing)</li>
<li>Certifications: IEC/EN60601-1 | CE, FCC Class B</li>
</ul>
</li>
</ul>
<h3>WHAT’S IN THE BOX:</h3>
<ul>
<li>Giada H611 I5-11300H High-end Medical Computer - White x1</li>
<li>Wi-Fi Antenna x1</li>
<li>AC Power Cable x1</li>
<li>AC Power Adapter x1</li>
</ul>
