HDCVT 1x4 HDMI 1.4 Splitter 4K with EDID Management

<p>The HDCVT 1x4 HDMI 1.4 Splitter 4K with EDID Management is a high-performance solution for distributing a single HDMI input to up to four outputs simultaneously. Designed for seamless video and audio performance, it supports resolutions up to 4Kx2K at 50/60Hz YCbCr 4:2:0, delivering stunning clarity for all your content. With HDR and Dolby Vision compatibility, the splitter ensures a dynamic visual experience with vibrant colours and enhanced contrast. Its HDCP 1.4 compliance guarantees smooth playback of protected content, making it ideal for home theaters, conference rooms, or retail displays.</p>
<p>This splitter offers 10.2Gbps video bandwidth, ensuring stable and reliable signal transmission for a range of resolutions, including 3D and multiple colour depths up to 12-bit. The EDID management feature allows you to select between STD and TV modes via a convenient switch, providing optimal compatibility and performance with connected devices. Supporting a wide variety of audio formats, such as Dolby Digital, DTS-HD Master Audio, and DSD, it ensures an immersive audio experience alongside its superior video capabilities.</p>
<p>Built with a durable metal enclosure, the HDCVT 1x4 HDMI Splitter is easy to install with a plug-and-play design, requiring no additional setup. It includes robust ESD protection to safeguard against electrostatic damage, making it a reliable choice for long-term use. Whether for professional or personal applications, this splitter combines advanced functionality and user-friendly features to deliver unparalleled performance for all your HDMI distribution needs.</p>
<h3>FEATURES:</h3>
<ul>
<li>HDCP 1.4 compliant</li>
<li>Support video bandwidth 10.2Gbps</li>
<li>Video resolution is up to 4Kx2K@50/60Hz YCbCr 4:2:0</li>
<li>Supports 3D, HDR, and Dolby Vision</li>

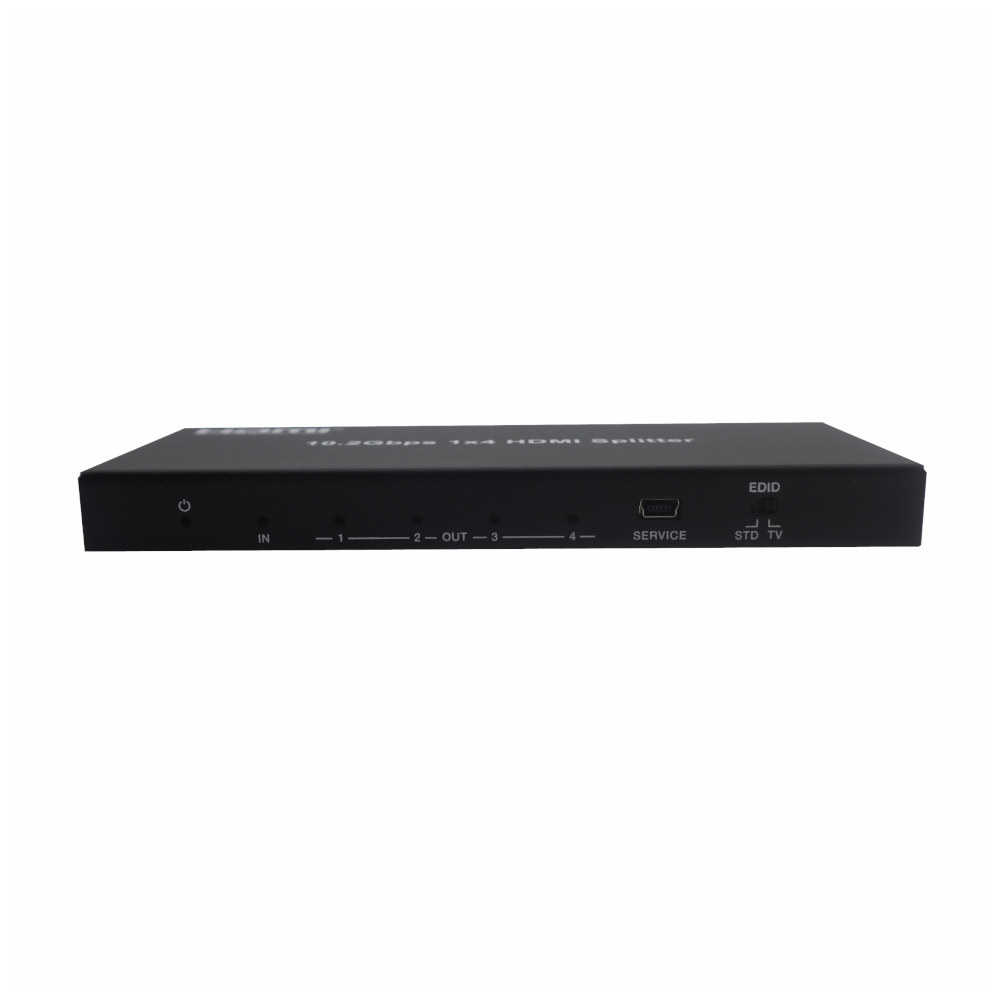

<li>EDID can be selected with STD and TV modes via a switch on the panel</li>
<li>Easy to install plug-and-play</li>
</ul>
<h3>SPECIFICATIONS:</h3>
<ul>
<li>HDCP Compliance: HDCP 1.4</li>
<li>Video Bandwidth: 10.2Gbps</li>
<li>Video Resolution:
<ul>
<li>4K2K 50/60Hz 4:2:0</li>
<li>4K2K 30Hz 4:4:4</li>
<li>1080p, 1080i, 720p, 720i, 480p, 480i</li>
<li>All HDMI 3D TV formats</li>
<li>All PC resolutions including 1920 x1200</li>
</ul>
</li>
<li>3D Support:  Yes</li>
<li>Colour Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0</li>
<li>Colour Depth: 8/10/12-bit</li>
<li>HDMI Audio Formats:
<ul>
<li>PCM2.0/5.1/7.1CH</li>
<li>Dolby Digital/Plus/EX</li>
<li>Dolby True HD</li>
<li>DTS</li>
<li>DTS-EX</li>
<li>DTS-96/24</li>
<li>DTS High Res</li>
<li>DTS-HD Master Audio</li>
<li>DSD</li>
</ul>
</li>
<li>HDR Formats; HDR10, HDR10+, Dolby Vision</li>
<li>ESD Protection: Human-body Model:
<ul>
<li>±8kV (Air-gap discharge)</li>
<li>±4kV (Contact discharge)</li>
</ul>
</li>
<li>Input Ports:
<ul>
<li>1x HDMI Type A [19-pin female]</li>
<li>1x SERVICE port [5-pin, mini USB-B]</li>
</ul>
</li>

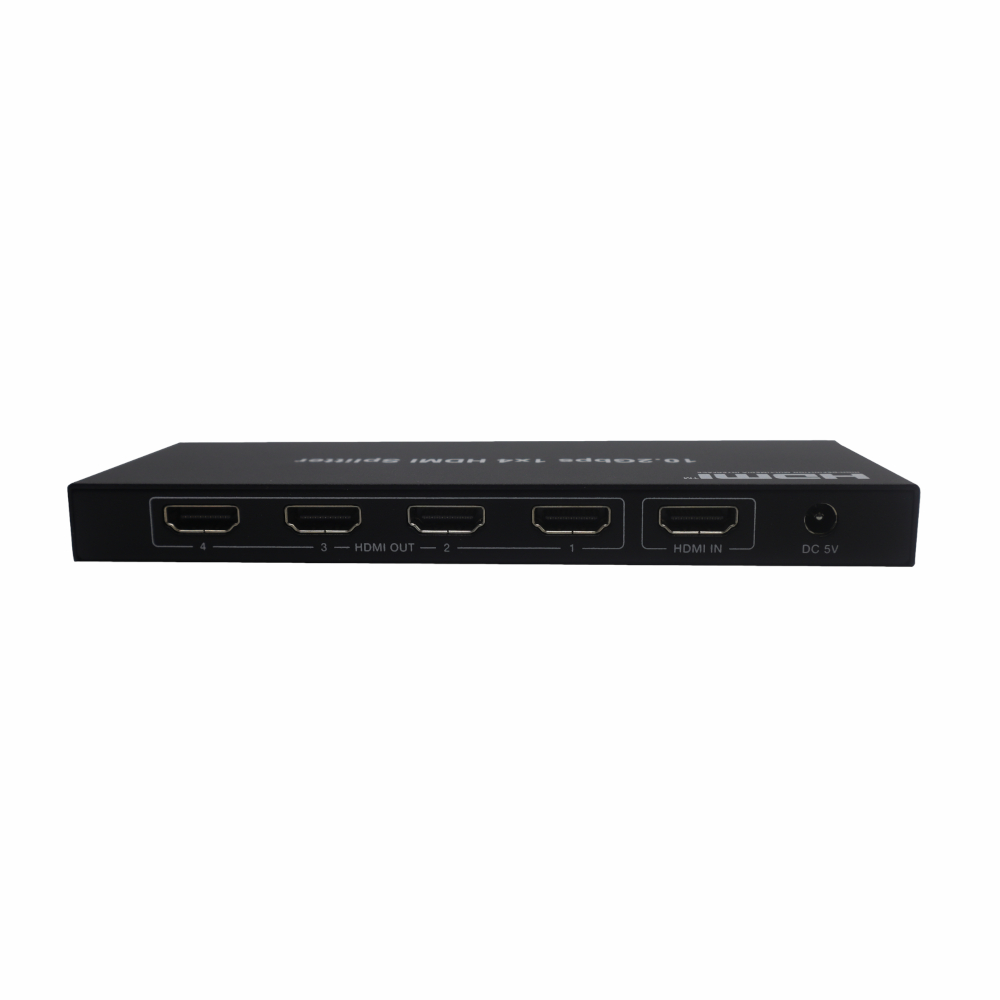

<li>Output Ports: 4x HDMI Type A [19-pin female]</li>
<li>Housing: Metal Enclosure</li>
<li>Power Supply:
<ul>
<li>Input: AC 100~240V 50/60Hz</li>
<li>Output: DC 5V/1A</li>
</ul>
</li>
<li>Colour: Black</li>
<li>Product Dimensions: 16.3 x 6.3 x 1.6 cm</li>
<li>Product Weight: 260g</li>
</ul>

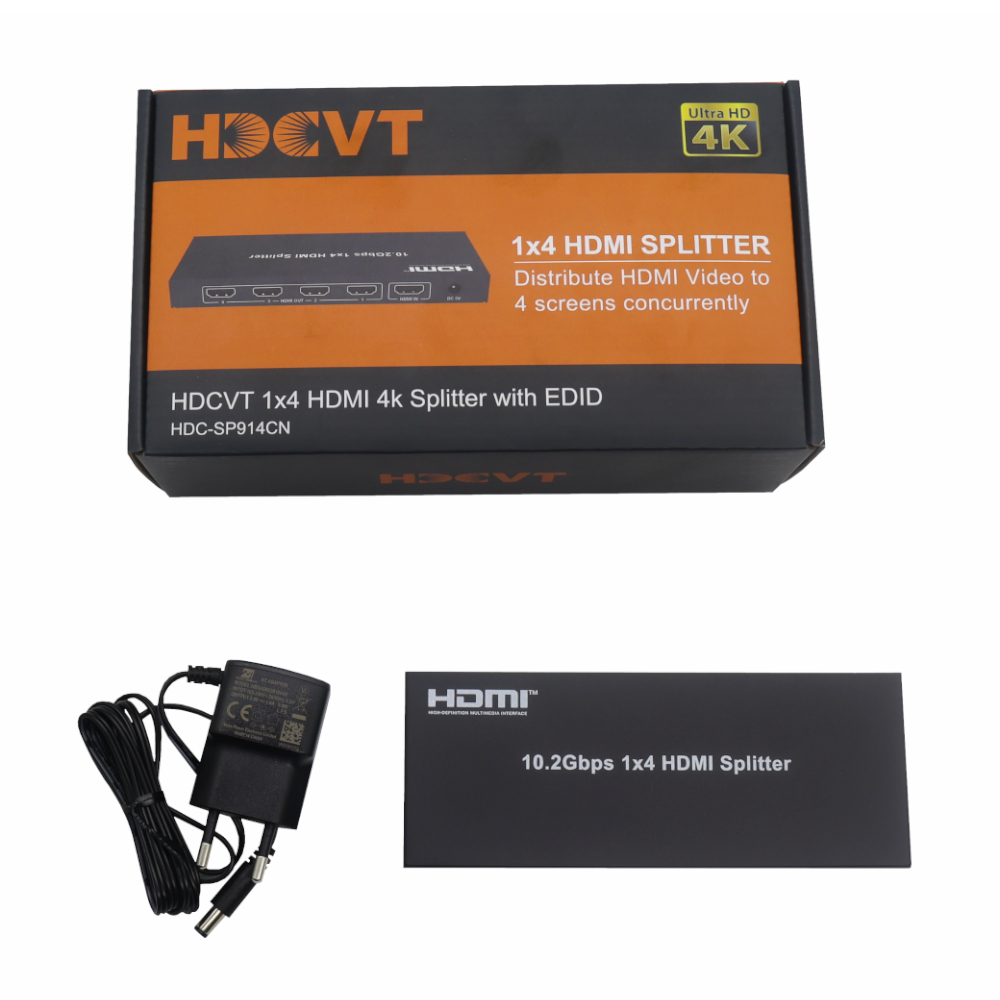

<h3>WHAT'S IN THE BOX:</h3>
<ul>
<li>HDCVT 1x4 HDMI 1.4 Splitter 4K with EDID Management - Black x1</li>
<li>Charging Cable x1</li>
<li>User Manual x1</li>
</ul>
