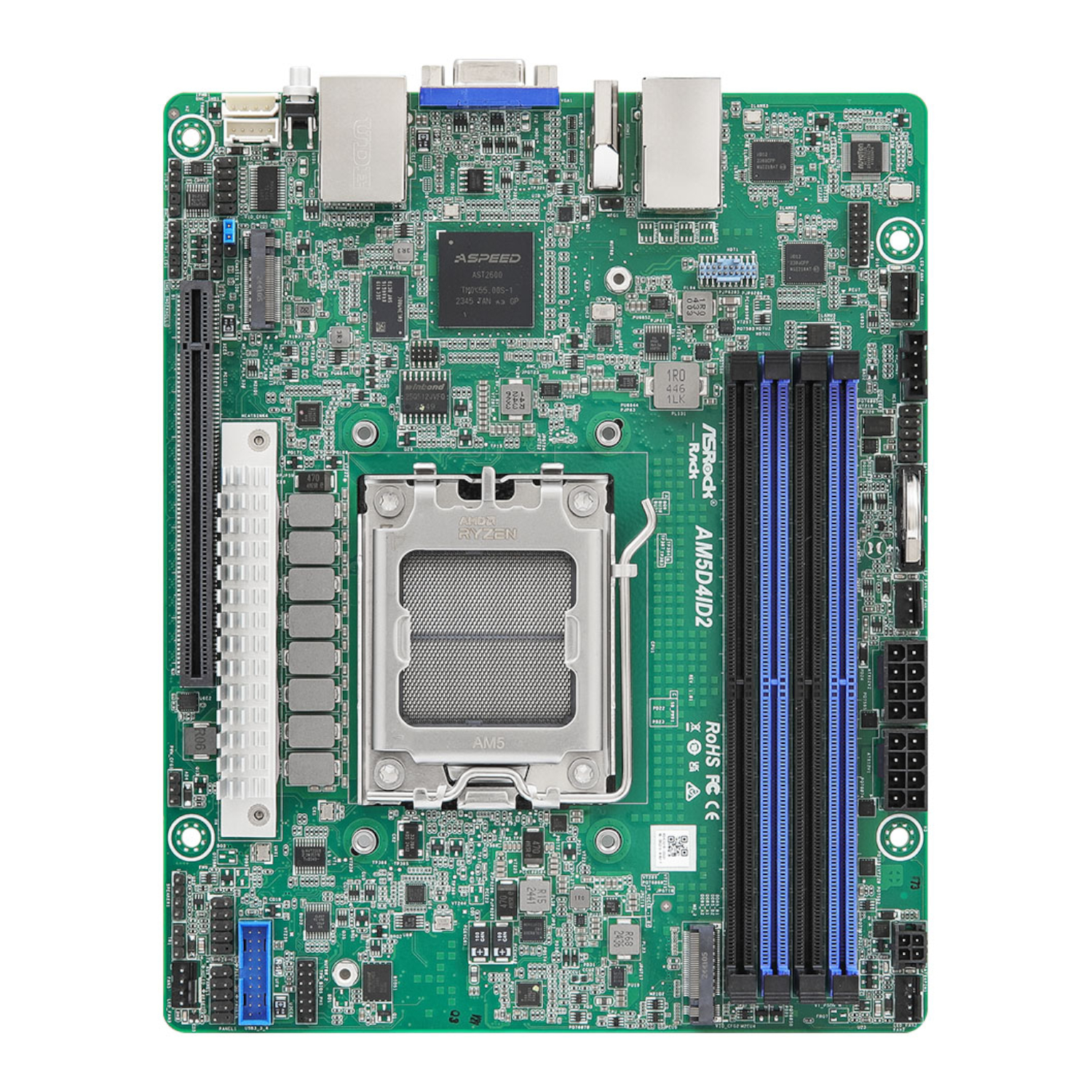

ASRock AMD X600 Deep mini-ITX Server Motherboard

Build a robust server with support for the latest AMD EPYC™ and Ryzen™ processors | Dual 1GbE LAN with IPMI ensures reliable network connectivity and remote management.

Quick Specs

• Supports both high-performance AMD EPYC™ and Ryzen™ series processors for versatile server builds.
• Features dual 1GbE LAN ports, including a dedicated IPMI port for efficient remote server management.
• Provides four DIMM slots, supporting 2 DIMMs per channel for ample memory capacity.
• Equipped with essential connectivity, including VGA, HDMI, USB 3.2 Gen1, and a COM header.
• Designed for reliability with support for ATX 24-pin and 12V DC-in power, ensuring stable operation.

This ASRock AMD X600 Deep mini-ITX Server Motherboard is engineered for those who demand reliability and performance in their server infrastructure. Whether you are establishing a new small business server, upgrading a home lab, or building a dedicated workstation, this motherboard provides a solid, adaptable platform. It is designed to accommodate the latest AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/8000/7000 Series Processors, offering significant processing power for demanding tasks. The compact mini-ITX form factor does not compromise on functionality; it integrates critical server features into a smaller footprint, ideal for space-conscious environments across South Africa. This mini-ITX server motherboard sets a new standard for compact, high-performance computing.

Engineered for Connectivity and Control

Reliable network performance and robust management are paramount for any server. This motherboard features dual 1GbE LAN ports, with one port dedicated to IPMI (Intelligent Platform Management Interface). This dedicated connection allows for out-of-band management, meaning you can monitor, diagnose, and control your server remotely, even if the main operating system is unresponsive or offline. This is crucial for maintaining uptime and reducing the need for physical intervention. Additionally, the motherboard includes an Intel® i210 Ethernet Controller, further enhancing its networking capabilities and ensuring seamless data flow. For those building with the AM5 platform, this motherboard offers unparalleled stability.

Scalability and Essential Features

To support your growing needs, the ASRock X600 Deep motherboard is equipped with four DIMM slots, supporting a 2 DIMMs per channel configuration. This allows for substantial memory capacity, vital for multitasking and running memory-intensive applications. Essential front-panel and rear-panel connectivity is provided, including VGA and HDMI video outputs, multiple USB 3.2 Gen1 Type-A ports for peripheral connection, a COM header for legacy device support, and various internal headers for chassis intrusion, system panel controls, and fan management. The inclusion of a TPM header also supports enhanced security features, making this a truly versatile solution among AM5 motherboards.

Reliable Power and System Management

The power delivery system is designed for stability and flexibility. It supports both a standard 24-pin ATX power connector and 8-pin 12V DC-in connectors, ensuring it can be integrated into various power supply configurations. Diagnostic tools are built-in, such as the UID button with LED for easy identification in a rack, an 80 debug port header for advanced troubleshooting, and thermal sensor headers to monitor system temperatures. This motherboard is built to last, providing a dependable core for your server operations. As a top-tier option among server motherboards, it ensures your system performs optimally.

FEATURES:

• Build a powerful server system with support for the latest AMD EPYC™ and Ryzen™ processors, offering flexibility for your specific workload.
• Ensure continuous operation and efficient management with dual 1GbE LAN ports, including a dedicated IPMI port for remote control.
• Expand memory capacity with four DIMM slots, supporting 2 DIMMs per channel for demanding applications.
• Connect a range of peripherals and devices with multiple USB 3.2 Gen1 ports and legacy COM support.
• Achieve stable and reliable power delivery through support for both ATX 24-pin and 12V DC-in power connectors.
• Facilitate easy system identification and troubleshooting with the integrated UID button, LED, and 80 debug port.
• Maintain optimal system temperatures with multiple fan headers and thermal sensor monitoring capabilities.
• Enhance security with a dedicated TPM header for hardware-based encryption and secure boot functionalities.

SPECIFICATIONS:

• Processor System
  • CPU: Supports AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/8000/7000 Series Processors
  • Socket: Single Socket AM5 (LGA 1718)
  • Thermal Design Power: Up to 170W by proper cooling solution
  • Chipset: AMD X600
• System Memory
  • Supported DIMM Quantity: 4 DIMM slots (2DPC)
  • Supported Type DDR5 288-pin ECC/non-ECC UDIMM
  • Max. Capacity per DIMM 48GB
  • Max. DIMM Frequency 5600 MHz (1DPC); 3600 MHz (2DPC)
  • Voltage 1.1V
• PCIe Expansion Slots (SLOT7 close to CPU)
  • PCIe x 16 PCIe5.0 x16 [CPU]
• Other PCIe Expansion Connectors
  • M.2 slot 2 M-key (PCIe5.0 x4), supports 2280 form factor [CPU]
• Ethernet
  • Additional Ethernet Controller Intel® i210: 2 RJ45 (1GbE)
• Server Management
  • BMC Controller ASPEED AST2600
  • Dedicated IPMI LAN 1 Realtek RTL8211F for dedicated management GLAN
• Graphics
  • Controller ASPEED AST2600:
  • 1 DB15 (VGA)
  • AMD Processors with Graphics:
  • 1 HDMI
• Rear I/O
  • UID Button/LED: 1 UID button w/ LED
  • Video Port: 1 DB15 (VGA), 1 HDMI
  • USB 3.2 Gen1 Port: 2 Type-A (USB3.2 Gen1)
  • RJ45: 2 RJ45 (1GbE) 1 dedicated IPMI
• Internal Connector/Headers
  • Power Connector: 1 (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable, 2 (8-pin, ATX 12V) support 12V DC-in
  • Auxiliary Panel Header: 1 (9-pin): chassis intrusion, system fault LED, LAN activity LED
  • System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
  • COM Header: 1
  • Speaker Header: 1
  • Fan Header: 4 (4-pin)
  • Thermal Sensor Header: 1
  • TPM Header: 1 (13-pin, SPI)
  • SMBus Header: 1
  • PMBus Header: 1
  • IPMB Header: 1
  • Clear CMOS: 1
  • Others: 1 UID header (4-pin), 1 NCSI header (4-pin), 1 IPMI LAN LED header (4-pin), 1 80 debug port header (13-pin)
  • USB 3.2 (Gen1) Header: 1 header (19-pin, 2 USB3.2 Gen1)
• LED Indicators
  • Standby PWR LED 1 (5VSB)
  • Fan Fail LED 4
  • BMC Heartbeat LED 1
• System BIOS
  • BIOS Type: AMI UEFI BIOS; 256Mb (32MB) SPI Flash ROM
  • BIOS Features: Plug and Play, ACPI 5.1 compliance wake up events, SMBIOS 2.3
• Supported OS
  • OS: Windows® 10 (64 bit) | Windows® 11 (64 bit) | Linux: UBuntu 22.04.2 (64 bit)
  • On the Windows® system, RAID mode supports UEFI Boot only.
  • * The Linux system doesn't support RAID mode.

WHAT'S IN THE BOX:

• ASRock AMD X600 Deep mini-ITX Server Motherboard - Green x1
