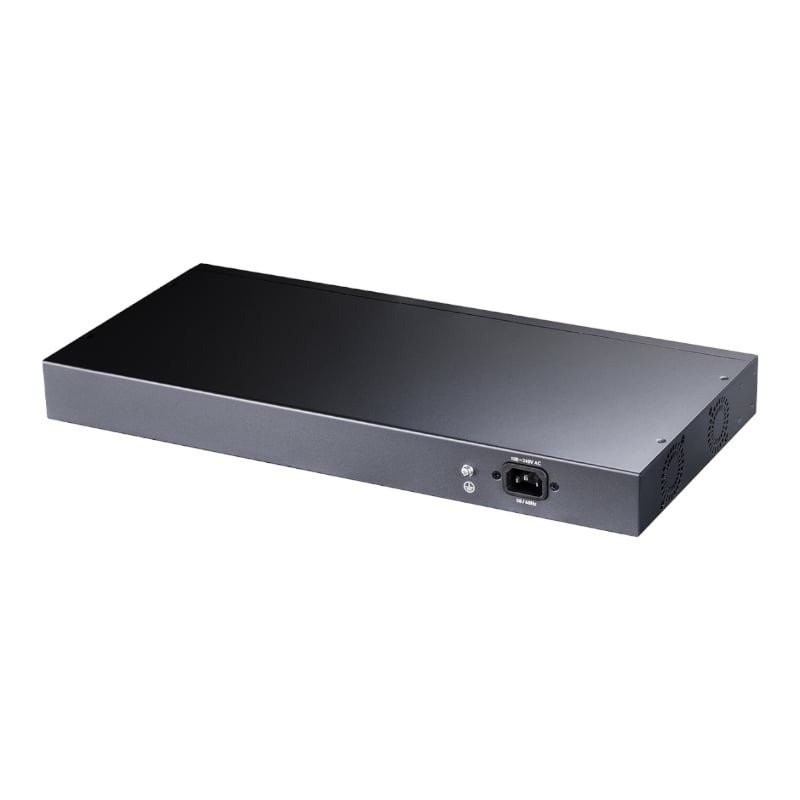

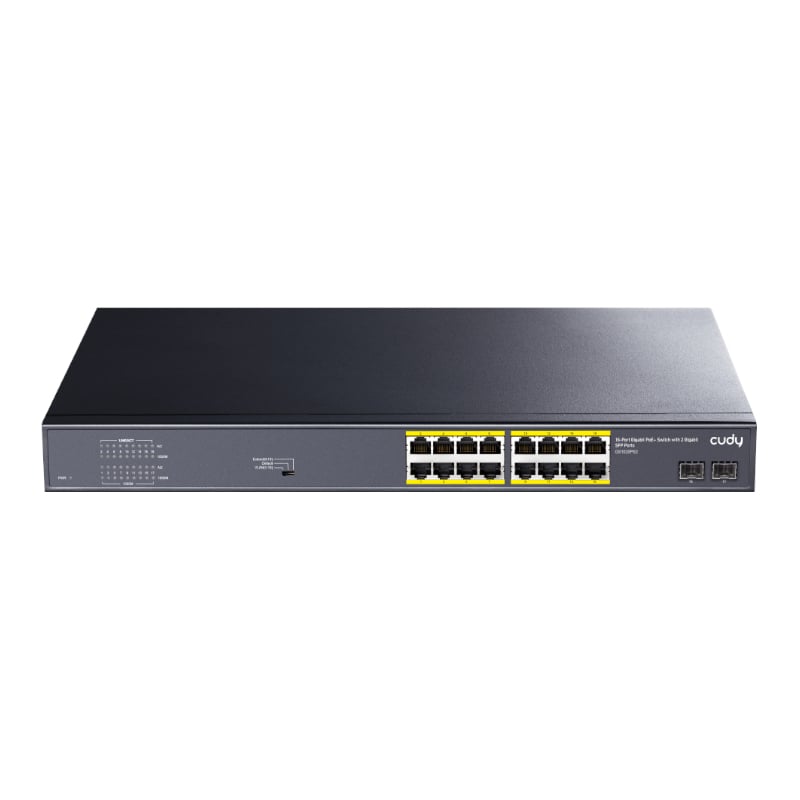

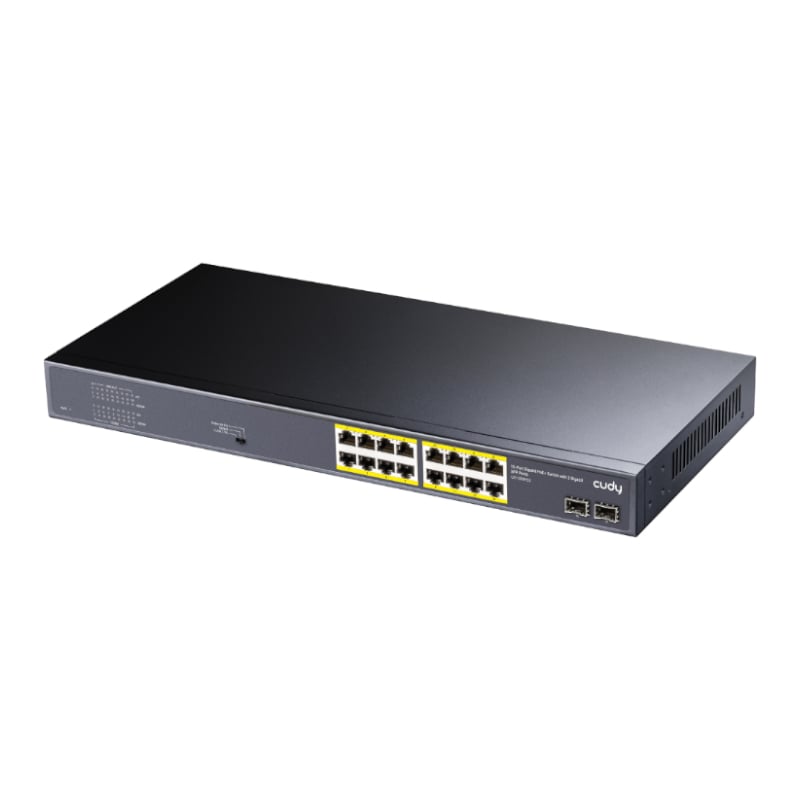

Cudy 16-Port PoE+ Unmanaged Switch

The Cudy GS1020PS2 16-Port Gigabit PoE+ Switch offers the forwarding capacity to simultaneously process traffic on all ports at a line rate without any packet loss. It supports bandwidth speeds of up to 18Gbps and features 16 PoE ports and 2 Gigabit SFP ports. The 16 port switch supports 200W total PoE power and up to 30W for one PoE port. For additional protection, it features power auto-detection for devices. This feature will not burn non-standard PoE devices or normal PoE switches. A VLAN mode helps isolate the ports from each other for even further protection. It also complies with IEEE802.3af/at Standard speeds for great performance. Used for many applications the Cudy GS1020PS2 works with IP Cameras for home, office or small businesses. It also works well with VoIP phones for business conferences and WiFi APs for the office and businesses. It even features a CCTV mode for longer distances up to 250 meters. Its simple plug and play interface makes it incredibly easy to use. Its sturdy design is made from high-quality metal. This gives you a longer service life and provides better heat dissipation, making it suitable for most environments. It also features a fanless design for silent operation. FEATURES: IEEE 802.3af / 802.3at standard compliant 200-watt total PoE power budget, up to 30-watt per port 16xGbE PoE+Port+2 x SFP Port CCTV Mode supports remote power & data feeding up to 250M VLAN mode supports 16 POE+ ports isolated from each other LED indicators for network diagnostics 19-inch metal case, internal power design SPECIFICATIONS: Connector Type: 16 x 10/100/1000M PoE Ports + 2 x Gigabit SFP Uplink Ports Network Media (Cable): IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z PoE Parameters: PoE Standard: IEEE802.3af /IEEE802.3at Max each port: 15.4W ( IEEE 802.3af ) Max each port：30W ( IEEE 802.3at ) PoE compatibility: IEEE 802.3af/at adaptive PoE port output: DC48-55V Power Pin : Power over spare pairs 1/2(+) , 3/6 (-) Network Media: 10BASE-T: Cat 5E UTP(≤250 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter) 1000BASE-TX: Cat5 or more UTP (≤100 meter) Optical: Multi-Mode Fiber: 850nm, 1310nm,  Transmission Distance: 550m/2Km Single-Mode Fiber: 1310nm, 1550nm,  Transmission Distance: 20/40/60/80/100/120km Performance Specification: Bandwidth: 52Gbps MAC: 8K Packet Neck Scarfer Memory: 4M Packet Forwarding Rate: 38.7Mpps Power Supply: Power input: AC100-240V 50/60Hz,  Power Budget: 200W LED Indicator: PWR: Power supply indicator (Red) 1-26: RJ-45 LINK indicator (Green) 1-26: RJ-45 ACT indicator (Green) WHAT'S IN THE BOX: Cudy GS1020PS2 16-Port Gigabit PoE+ Switch - Grey x1 Power Adapter x1
