Giada BQ612 with H610 Barebone W/O CPU RAM and SSD
The GIADA BQ612 with H610 Barebone is a small yet powerful computer built to satisfy your demands. It has an Intel® LGA1700 Socket, which is compatible with 12th/13th Gen processors and ensures high-performance computing. It has two DDR4-3200 MHz memory slots and is capable of handling...
Get Notified When Available
Enter your email and we'll notify you when this item is back in stock.
Frequently Bought Together

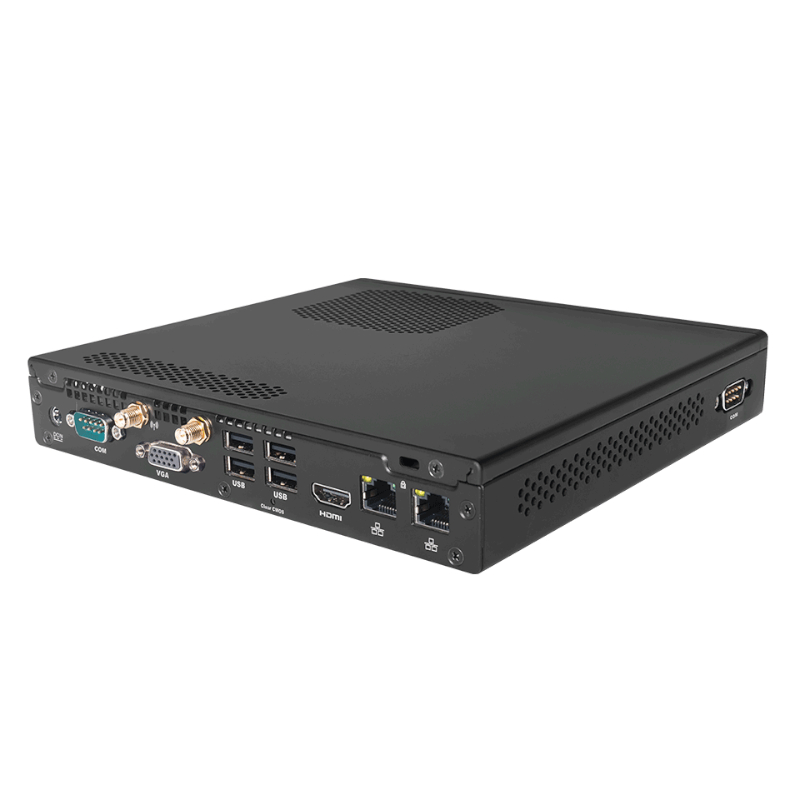

The GIADA BQ612 with H610 Barebone is a small yet powerful computer built to satisfy your demands. It has an Intel® LGA1700 Socket, which is compatible with 12th/13th Gen processors and ensures high-performance computing. It has two DDR4-3200 MHz memory slots and is capable of handling multitasking and demanding tasks. The barebone has one HDMI port that supports 4K resolution for amazing images.
With 2 x RJ45 Gigabit LAN connections and 1 x E-Key M.2 (2230) slot for WiFi/BT, you'll be able to stay connected in any setting. The GIADA BQ612 is distinguished by its lengthy life cycle, which ensures long-term performance and reliability for your computing demands. This barebone is ready to go, whether for business or play.
Note: CPU is not included.
FEATURES:
- 1 x HDMI supporting 4K
- Intel® LGA1700 Socket 12th/13th Gen. processors
- 2x DDR4-3200 MHz Memory
- 2 x RJ45 Gigabit LAN and 1 x E-Key M.2 (2230) for WiFi/BT
- Long life cycle
SPECIFICATIONS:
- Processor:
- CPU: Intel® LGA1700 Socket 12th/13th Gen. processors
- Turbo Frequency: by CPU
- Chipset: H610/B660
- Processing Units: by CPU
- TDP: ≤ 65 W
- Memory:
- Type: 2 x SO-DIMM DDR4-3200 MHz
- Size: Up to 64 GB
- Storage:
- Socket 1: 1 x M-Key M.2 (2242/2280) for PCIe SSD
- Socket 2: 1 x 2.5” SATAIII (7+15 pin)
- Graphics:
- GPU: Intel® UHD Graphics 730/770
- Graphic Engine: DirectX 12.0, OpenGL 4.5, OpenCL 3.0,
- VGA: 1 x VGA (Max. 2048 x 1536 @60 Hz)
- HDMI: 1 x HDMI (Max. 4096 x 2160 @60 Hz)
- Network:
- Controller: Realtek RTL 8111H Gigabit Ethernet
- Interface: 2 x RJ45
- Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT Support Wi-Fi 5, Wi-Fi 6
- Mobile Network: 3G/4G colay with 1 x Mini-PCIe for MSATA, 1 x SIM Slot
- I/O:
- USB: 1 x USB Type-C3.2 Gen1 (H610), 2 x USB3.2 Gen1, 6 x USB2.0 (H610)
- Serial Port: 2 x RS232
- Audio: 1 x MIC-IN, 1 x AUDIO-OUT
- Antenna: 2 x Connector for Wi-Fi/BT
- Button: 1 x Power on, 1 x CLR-CMOS
- System:
- TPM: Optional: TPM2.0
- Watchdog Timer: Yes
- Auto Power on: Yes
- RTC: Set up independently every day
- Remo on: Yes
- Operation System:
- Windows: Windows 10 (64Bit), Windows 11 (64bit)
- Linux: Linux Ubuntu (64bit)
- Power:
- Power Type: DC-IN
- Input Voltage: 19V/4.74A
- Environment:
- Operating Temperature: 0°C ~45°C (32°F~113°F) @0.7m/s Air Flow
- Relative Humidity: 95% @ 45°C (non-condensing)
- Certification: CE, FCC Class B
- Construction: Metal
- Colour: Black
- Dimensions: 20 x 18.5 x 3.5 cm
WHAT’S IN THE BOX:
- Giada BQ612 with H610 barebones embedded PC – Black x1
- WiFi Antenna x2
- AC Power Adapter x1
- Power Cable x1
- User Manual x1
| Brand | Giada |
| Colour | Black |
| Form Factor | - |
| Interface | - |
| Capacity | - |
| Memory Capacity | - |
| Screen Size | - |
| Resolution | - |
| Refresh Rate | - |
| Cpu | - |
| Cpu Socket | - |
| Warranty | 24 Months |
