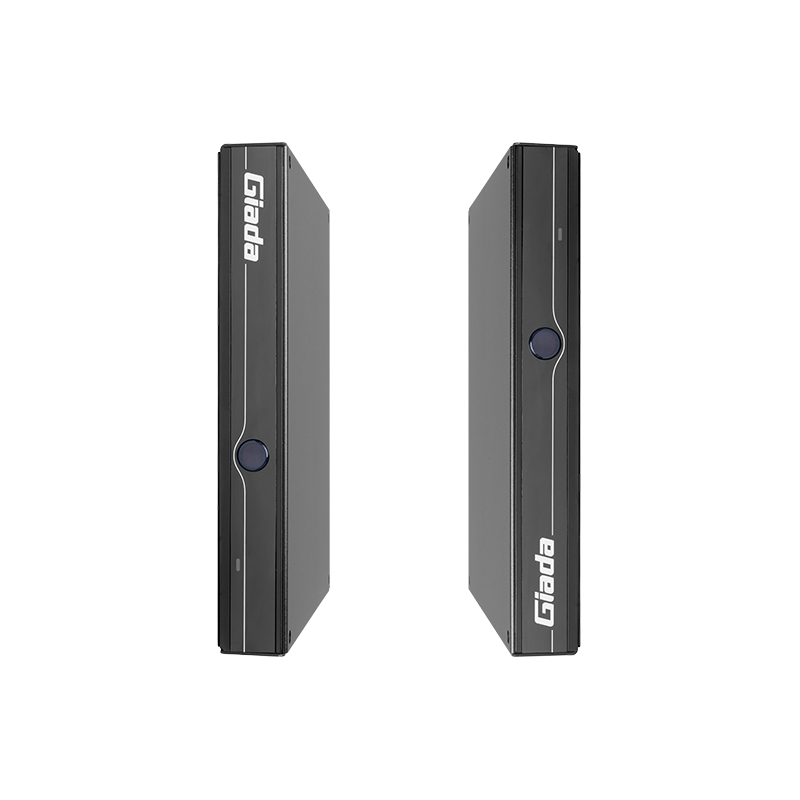

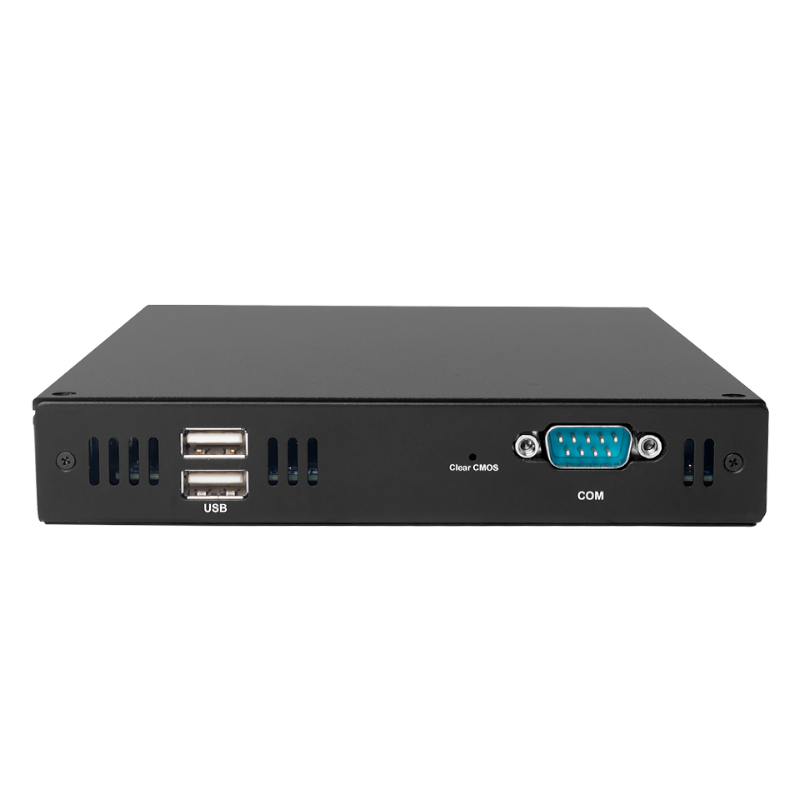

Giada F106D Celeron N5100 4GB eMMC

The Giada F106D Mini PC comes with Jasper Lake processors, such as the Celeron® N5100 (TDP 6W, 1.1GHz base frequency). The PC utilises Intel® UHD Graphics and is capable of delivering vibrant dual 1080p video playback. The device has HDMI 2.0a and DisplayPort 1.2 ports, which are capable of supporting resolutions up to 4096 x 2160 at a refresh rate of 60Hz. The device is equipped with a passive thermal cooling system, which features a fanless design. This design not only reduces the failure rate but also ensures that the device operates noise-free and remains dustproof. The Giada F106D Mini PC is designed to be used in mission-critical applications. FEATURES: Intel® Celeron® N5100 Processor 1 x DP, 1 x HDMI, Supporting 4K Display Onboard LPDDR4 4GB 2 x RJ45 Gigabit LAN and 1 x E-Key M.2 (2230) for Wi-Fi/BT Long life cycle Fanless Design SPECIFICATIONS: Processor: CPU: Intel® Celeron® N5100 processor (Fanless) Turbo Frequency: 2.80 GHz/2.90 GHz Chipset: SoC Processing Units: 4 Cores/4 Cores Memory: Type: Onboard LPDDR4-2666 MHz Size: 4GB Storage Supported: Socket 1: 1 x M-Key M.2 (2242/2280) for SSD (only PCIe SSD) Socket 2: 1 x Full-size Mini-PCIe for MSATA Graphics: GPU: Intel® UHD Graphics Graphic Engine: DirectX 12.1, OpenGL 3.0, OpenCL 1.1, OpenGL ES 2.0, H.264, MEPG2 DisplayPort: 1 x DP (Max.4096 x 2160 @60 Hz) HDMI: 1 x HDMI (Max.4096 x 2160@60Hz) Network: Controller: Realtek RTL 8111H Gigabit Ethernet Interface: 2 x RJ45 Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT Support Wi-Fi 5, Wi-Fi 6 Mobile Network: 3G/4G colay with 1 x Mini-PCIe for MSATA, 1 x SIM Slot I/O: USB: 2 x USB3.2 Gen2, 4 x USB2.0 Serial Port: 1 x RS232 Audio: 1 x MIC-IN, 1 x AUDIO-OUT Antenna: 2 x Connector for Wi-Fi/BT, 1 x Connector for 3G/4G (Reserved) Button: 1 x Power on, 1 x CLR-CMOS System: TPM: TPM2.0 Watchdog Timer: Yes Auto Power on: Yes RTC: Set up independently every day Remo on: Yes Fanless: Yes Operation System: Windows: Windows 10 (64Bit), Windows 11 (64bit) Linux: Linux Ubuntu (64bit) Power: Power Type: DC-IN Input Voltage: 19V/2.37A Environment: Operating Temperature: 0°C ~45°C (32°F~113°F) @0.7m/s Air Flow Relative Humidity: 95% @ 45°C (non-condensing) Certification: CE, FCC Class B Construction: Metal Fanless: Yes Colour: Black Dimensions: 18.9 x 14.8 x 2.6 cm WHAT’S IN THE BOX: Giada F106D Intel Celeron Ultra-compact Fanless Player 4 GB – Black x1 Wi-Fi Antenna x2 AC Power Adapter x1 Power Cable x1 User Manual x1
