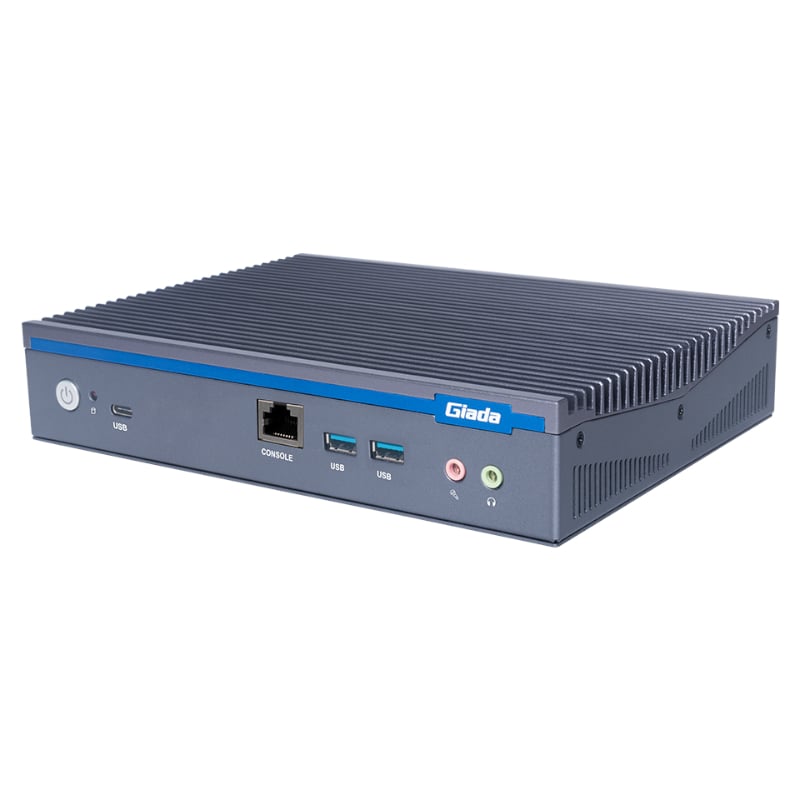

Giada RN28 with Intel N100 1x DDR4 3200Mhz x6 RJ45
The Giada RN28 adopts the formidable Intel Alder Lake-N processors, manufactured using an Intel 7 process. The network appliance adopts Processor N100 with 4 Cores and 4 threads. Meanwhile, RN28 features TDP under 15W, which provides superior processing power while minimizing energy...
Get Notified When Available
Enter your email and we'll notify you when this item is back in stock.
Frequently Bought Together
The Giada RN28 adopts the formidable Intel Alder Lake-N processors, manufactured using an Intel 7 process. The network appliance adopts Processor N100 with 4 Cores and 4 threads. Meanwhile, RN28 features TDP under 15W, which provides superior processing power while minimizing energy consumption.

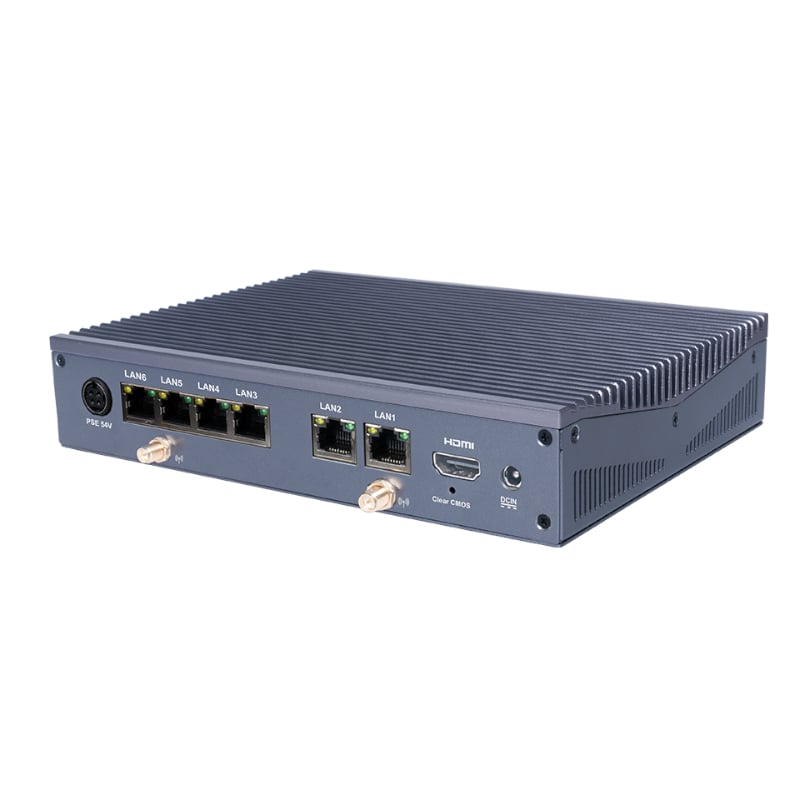

The RN28 model is designed for faster, more flexible connections, the RN28 comes with two Gigabit RJ-45 supporting a BYPASS pair on Lan 1-2, four Gigabit RJ-45 supporting PoE, allowing fast and direct connections. The RN28 also provides wireless flexibility, supporting Wi-Fi 5/6/6E
RN28 is equipped with four RJ45 ports that support Power over Ethernet (PoE) technology. Each of these ports is capable of delivering up to 30W of power. This design combines data connectivity and power delivery, simplifying network setup while providing seamless power to PoE-compatible devices. Featuring fanless design, this network appliance is perfect to be used in noise-sensitive environments.
FEATURES:
- Intel® Processor N100
- 1 x HDMI, Supporting 4K
- 1 x SO-DIMM DDR4 Memory, Up to 16GB
- 1 x M-key M.2 (2280) for SSD
- Supporting RJ45, WiFi 6(CNVi), 3G/4G/5G Ethernet Access
SPECIFICATIONS:
- Processor:
- CPU: Intel® Processor N100
- Frequency: 3.40 GHz
- Cores: 4 Cores
- Memory:
- Type: DDR4-3200MHz
- Socket: 1 x SO-DIMM
- Max Size: Up to 16 GB
- Graphics:
- GPU: Intel® UHD Graphics
- Graphic Engine: DirectX 12.1, OpenGL 4.6, OpenCL 3.0
- HDMI: 1 x HDMI (Max.4096 x 2160 @60 Hz)
- Network:
- Controller: 6 x Intel i219-LM Gigabit Ethernet
- Interface: 2 x GbE RJ45, 4 x GbE RJ45 (30 W PoE/LAN)
- Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E (CNVi)
- I/O:
- USB: 1 x USB Type-C3.2 Gen1 (5 Gbps), 2 x USB3.2 Gen1 (5 Gbps)
- Serial Port: 1 x RJ45 Console (RS232)
- Audio: 1 x Mic-In, 1 x Audio-Out
- Button: 1 x Power on, 1 x CLR-CMOS
- Antenna: 2 x Connector for Wi-Fi/BT
- Storage:
- Socket 1: 1 x M-Key M.2 (2280) for PCIe X2, for SSD
- Socket 2: 1 x 2.5" SATAIII, for HDD
- JAHC Tech:
- WatchDog Timer: Yes
- Auto Power On: Yes
- Operation System:
- Windows: Windows 11 (64bit)
- Linux: Linux Ubuntu (64bit)
- Power:
- Power Type: DC-IN
- Input Voltage: DC-IN, 19 V/3.42 A
- Environment:
- Operating Temperature: 0°C ~45°C (32°F~113°F) @0.7m/s Air Flow
- Relative Humidity: 95%@45℃ (non-condensing)
- Certification: CE, FCC Class B, UKCA
- Construction: Metal, Grey
- Colour: Black
- Dimensions: 20 cm x 15 cm x 4 cm
WHAT’S IN THE BOX:
- Giada RN28 Intel N100 Embedded Computer – Grey x1
- WiFi Antenna x1
- User Manual x1
