Antec VCX20M RGB Elite Micro-ATX | ITX Mini-Tower Gaming Chassis - Black

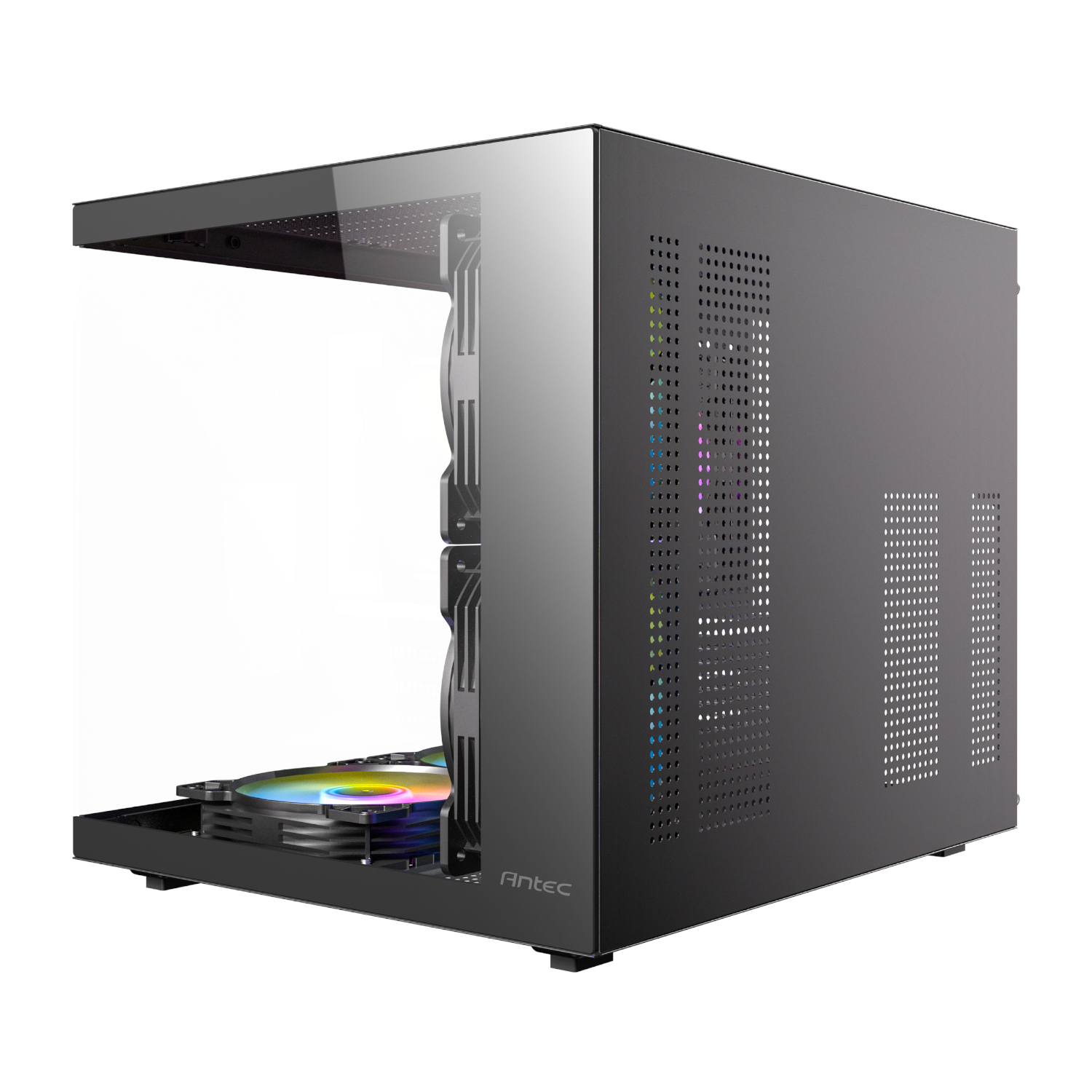

The Antec VCX20M RGB Elite Mini-Tower Gaming Chassis is purpose-built for gamers and PC enthusiasts seeking a compact yet performance-driven case. Designed to accommodate Micro-ATX and Mini-ITX motherboards, the VCX20M offers exceptional cooling and component compatibility in a space-saving footprint. With a sleek 270° panoramic glass panel design across the front and side, this chassis puts your build on full display while adding a touch of modern elegance to any setup.

Optimised for thermal performance, the dual-chamber layout separates heat-generating components like the CPU and GPU from the PSU and storage drives, improving airflow and maintaining system stability. The chassis features large mesh intake vents along the side and bottom, promoting strong vertical cooling to quickly dissipate heat. This smart layout not only ensures efficient airflow but also protects your components from thermal throttling and premature wear.

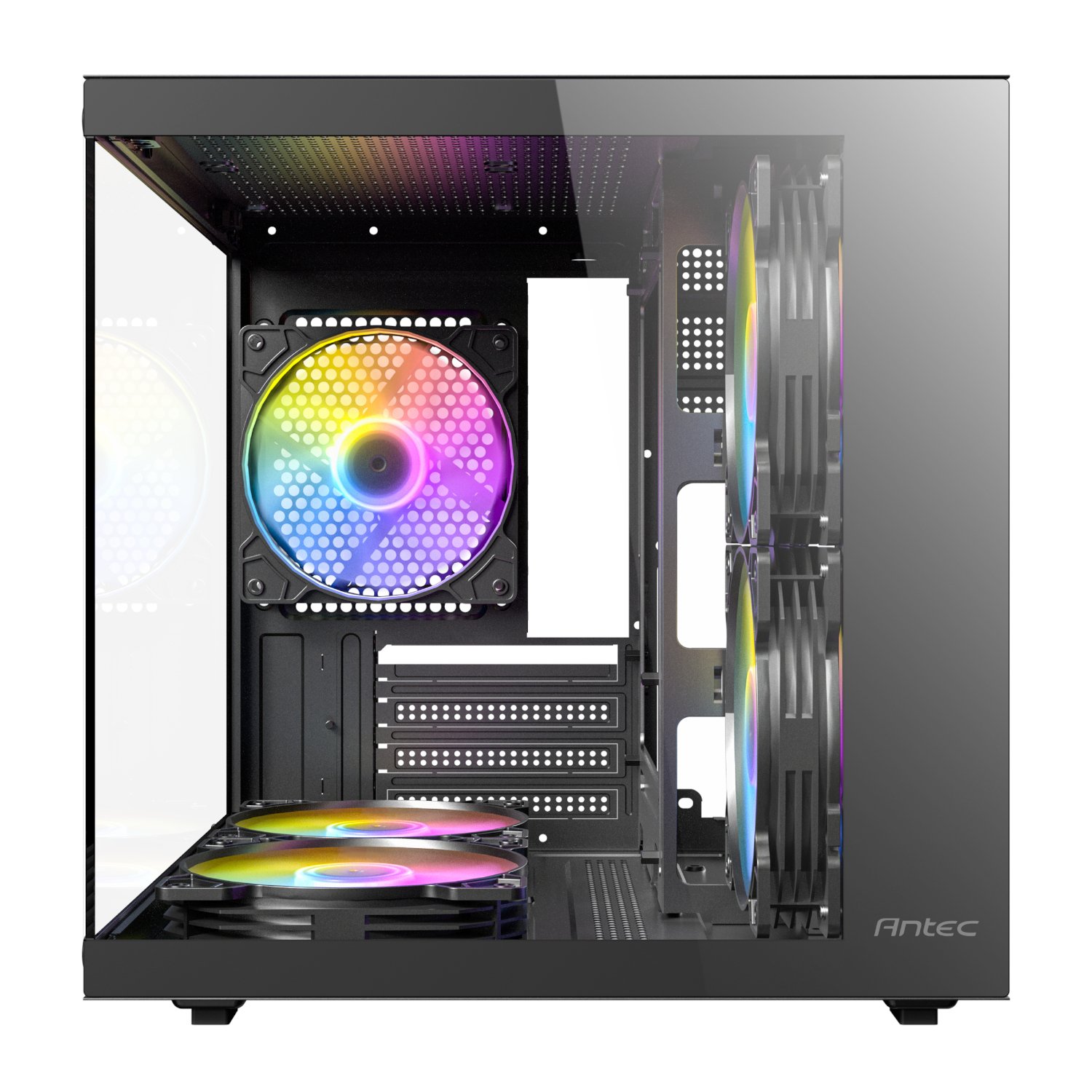

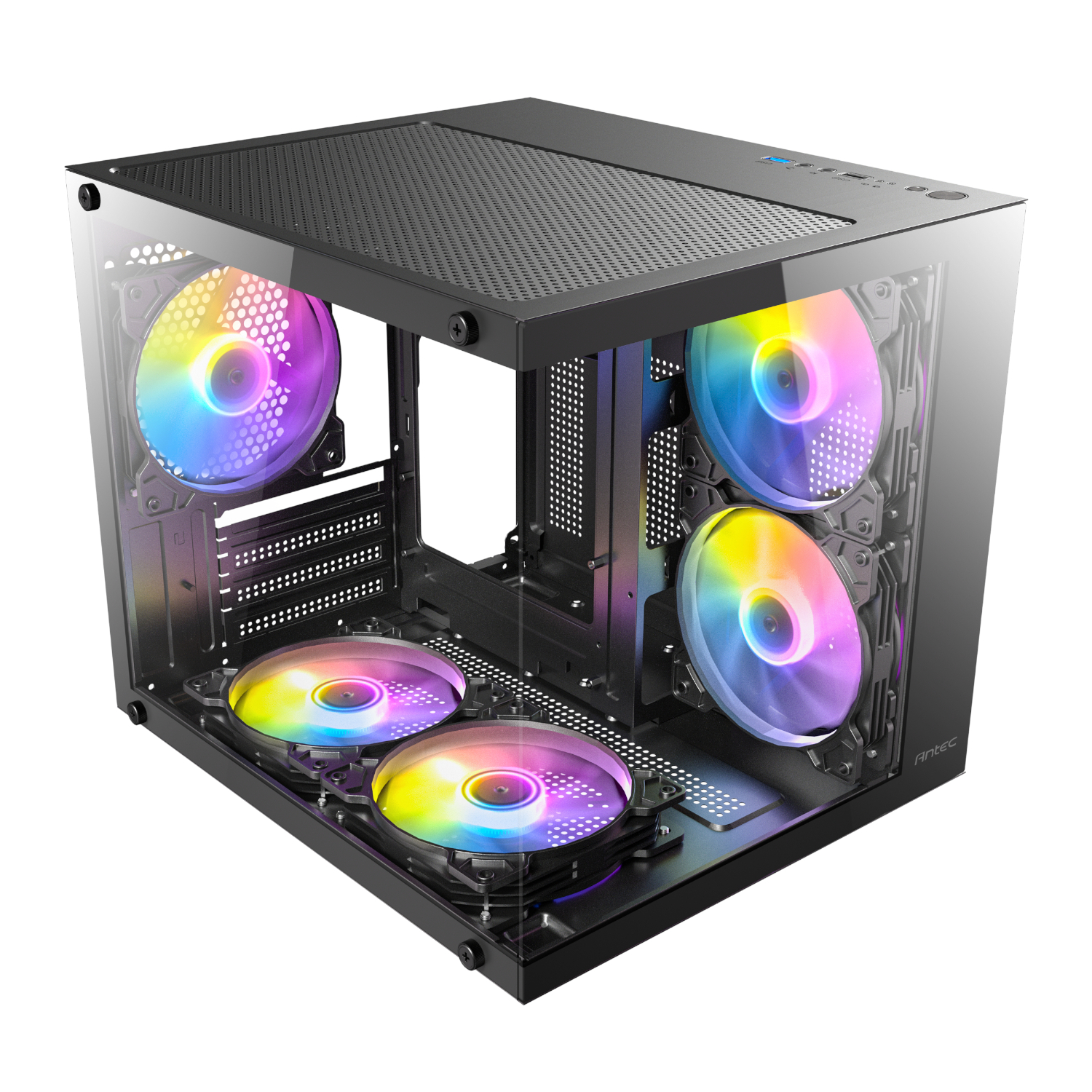

The VCX20M comes pre-equipped with five 120mm RGB fans—two reverse-mounted at the bottom, two on the side and one at the rear—ensuring vibrant lighting and excellent airflow right out of the box. With additional support for up to seven 120mm fans and a 120mm rear radiator, the case is ready for both air and AIO cooling solutions. This vertical airflow design maximises intake from below while effectively exhausting hot air, keeping your compact build cool under pressure.

Despite its smaller size, the VCX20M RGB Elite doesn’t compromise on functionality. With support for GPUs up to 320mm in length, CPU coolers up to 165mm, and PSUs up to 190mm, it delivers versatile hardware compatibility for gaming and productivity builds. The front I/O panel includes USB 3.0, USB 2.0, LED control, and HD audio, providing convenient access to your essential peripherals. Finished with tempered glass panels, a top-mounted dust filter, and modern RGB accents, the Antec VCX20M RGB Elite strikes the perfect balance between compact design, cooling efficiency, and visual appeal.

FEATURES:

• Compact design with powerful heat dissipation
• Tempered front and side glass panel
• Panoramic 270° view with dual chamber design
• Vertical cooling with massive air intake
• Pre-installed 5 x 120mm RGB fans
• Micro ATX and Mini ITX Motherboard Support

SPECIFICATIONS:

• Form Factor: Mini Tower
• Materials: Steel
• Mainboard Support: Micro-ATX, ITX
• Front Access & Controls: Power, LED Control Button, 1 x USB 2.0, 1 x USB 3.0 , HD-AUDIO
• Front and Side Panel: Tempered glass
• Expansion Slots: 4
• Drive Bays:
  • 3.5″: 1
  • 2.5″: 2
• Fan:
  • Top: 2 x 120mm
  • Side: 2 x 120mm
  • Bottom: 2 x 120mm
  • Rear: 1 x 120mm
  • Included Fan(s): 2 x 120mm RGB fans on the side + 2 x 120mm RGB reverse fans at the bottom + 1x 120mm RGB fan in rear
• Radiator Support:
  • Rear: 120mm
• Clearance:
• Max GPU Length: ≤ 320mm
• Max CPU Cooler Height: ≤ 165mm
• Max PSU Length: ≤ 190mm(with cable)
• Dust Filter: Top
• Product Dimensions: 33.4 x 28.5 x 29 cm
• Product Weight: 3200g

WHAT’S IN THE BOX:

• Antec VCX20M RGB Elite M-ATX Mini-Tower Gaming Chassis – Black x1
