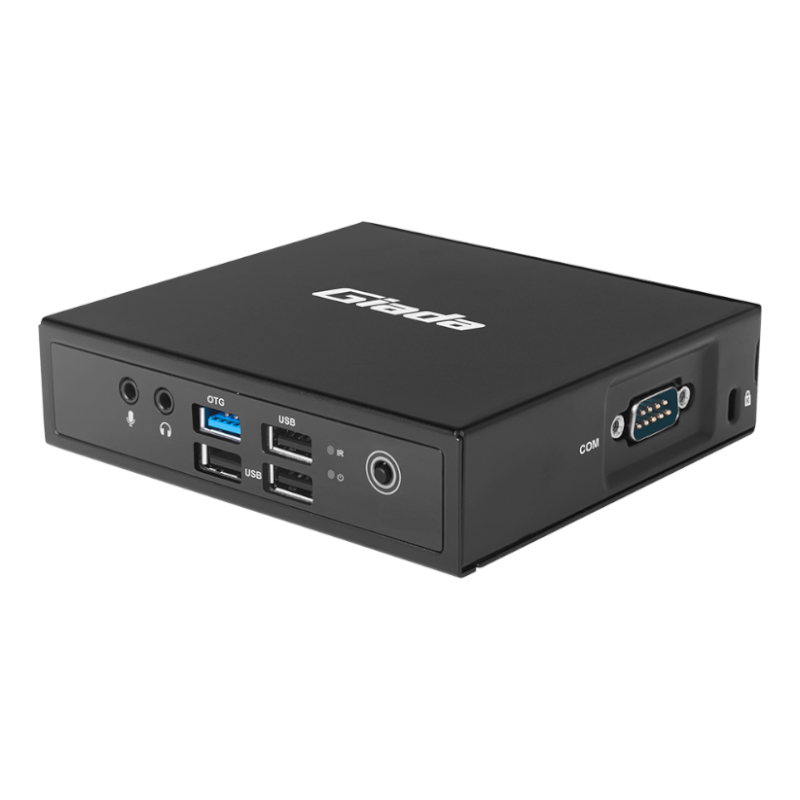

Giada DN74 ARM RK3399 Fanless Android Signage Player - 32GB

The Giada DN74 ARM Fanless Android Signage Player utilises an RK3399 Dual-core ARM Cortex-A72 and a Quad-core ARM Cortex-A53 CPU. It has onboard memory and eMMC storage. Its dual HDMI outputs support two displays, with one reaching 4K resolutions and the other running at a resolution of 2K. Giada brings all of these components together with the Android 7.1 operation system, making it a suitable entry-level signage player for Android environments.

Features:

• Rockchip RK3399
• Onboard 4GB LPDDR4 memory
• Two HDMI ports, one supporting 4K and the other 2K
• Onboard eMMC storage of 32GB
• One USB3.0 port and three  USB2.0 ports
•  RS232 Serial Port
• RJ45 Network connection
• Mini-PCIe slot for 3G/4G connectivity
• SIM Card slot

Specifications:

• Processor
  • CPU: Rockchip RK3399
  • Frequency: Up to 1.8GHz
  • Processing Units: 2 Cores Cortex-A72 & 4 Cores Cortex-A53
  • TDP: 6W
• Memory
  • Type: LPDDR4
  • Socket: Onboard
  • Size: 4GB
• Graphics
  • GPU: Mali-T860MP4
  • Graphic Engine: OpenGL ES1.1/2.0/3.0/3.1, OpenCL, Support AFBC (ARM Frame Neck Scarfer Compression)
  • Video Decoding Capability: 4K VP9 decoders, 4K 10bits H.265 video decoders, 1080P VC-1, MPEG-1/2/4, VP8 video decoders
• Display
  • HDMI: 1x HDMI (Max. 4K@60Hz) | 1x HDMI (Max. 2K@30Hz)
• Network
  • Controller: 1 x Pef7071 PHY
  • Interface: 1x RJ45
• I/O
  • USB: 1 x USB3.2 Gen1 (OTG), 3 x USB2.0
  • Serial Port: 2x RS232
  • Audio: 1x MIC-IN, 1x AUDIO-OUT
  • Mini-PCIe: 1x Full-size Mini-PCIe for 3G/4G
  • SIM: 1x SIM Slot
  • WiFi on Board: 1x WiFi Module Onboard (WIFI 5GHz, IEEE802.11 a/b/g/ac)
• Storage
  • eMMC: 32GB
• Power
  • Power Type: DC-IN
  • Power Adapter: 12V/2A
• Environment
  • Operating Temperature: 0℃ ~ 40℃ at 0.7m/s Air Flow
  • Relative Humidity: 95%@40℃ (non-condensing)
• Supported Operating Systems: Android 7.1
• Mounting: Desk/Wall Mounting and VESA
• Certification: CE, FCC
• Dimensions: 11.66 x 10.74 x 3 cm

What’s in The Box:

• Giada DN74 ARM RK3399 Fanless Android Signage Player 32GB x1
• AC Power Adapter x1
• WiFi Antenna x1
